YALE ASSURE SL ELECTRONIC DIGITAL DEADBOLT WITH APPLE IM1 NETWORK MODULE Digital Locks

*OBSOLETE*

Compatible with Apple HomeKit

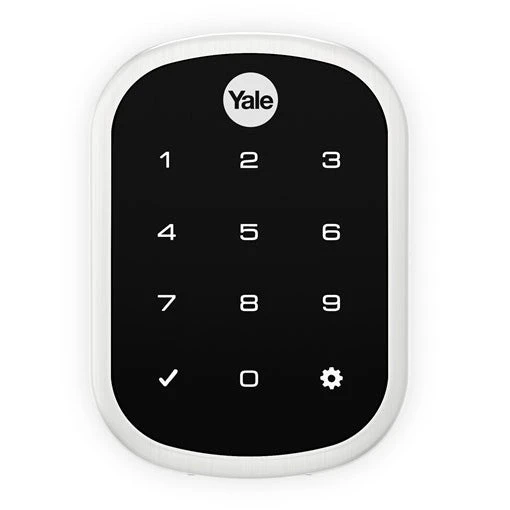

The Yale Assure SL with iM1 Network Module is our newest addition to Yale digital lock range. This sleek and modern touchscreen deadbolt allows you the ability to enjoy the convenience of 100% key-free access along with peace of mind of knowing who has access to your door. You’ll never have to carry around your keys again. The Yale Assure SL with iM1 Network Module integrates the lock seamlessly with your Apple HomeKit home automation system, so that you can control and monitor the lock from anywhere on your iPhone or iPad (iOS 10.3 or later).*

Create and manage unique PIN codes for family and friends whenever you need to using the Yale Secure App. In addition, the Yale Secure App allows you to see current lock status, lock and unlock, receive access notifications and customise lock settings.

*Requires Apple TV (tvOS 10.2 or later), HomePod, or iPad (iOS 10.3 or later) set up as a home hub with an internet connection.

Available in Satin Chrome finish.

Specification:

Backset	Adjustable 60-70mm
Battery type	AA
Body / Case Material	Zinc
Bolt Type / Function	Deadbolt
Door Thickness Range	35mm to 57mm
Door Preparation	25mm latch hole and 54mm lock hole
Lock Type	Deadbolt
Standard Finish	Satin Chrome
Warranty / Guarantee	Yale 1 year Electromechanical
Operational Temperature range	-25°C to 60°C
Operating Humidity	up to 95%
Approvals	RCM Compliant (EN 61000.6.3 2012 & EN 55032 2016)         ANSI/BHMA A156.36 Grade 2 Certified

Product Dimensions

	External	Internal
Height	92mm	168mm
Width	66mm	70mm
Length	17mm	54mm
