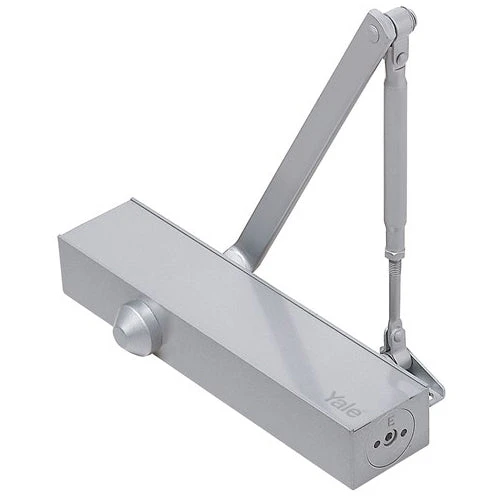

YALE A2600 SERIES POWER ADJUSTABLE HYDRAULIC DOOR CLOSER

The Yale A2600 is the complete door closer in one. It will cater for a wide range of applications, with power adjustment from sizes 2 to 6, fire rated with built-in delayed action and back-check making this door closer ideally suited for exterior doors, high traffic areas and installations affected by adverse weather conditions.

Slim neat design will complement most applications.

Each pack  contains “Z” Parallel Arm Bracket.

Adjustable Power
Closer spring power is adjustable for sizes 2 to 6.

Backcheck
Standard in this series.

Delayed Action
Independent valve control between 180˚ – 80˚ closing. Ideally suited for disabled door applications.

Materials
High pressure diecast aluminium body. Heat treated steel rack and pinion. Forged steel arms passivated against corrosion.

Overload Protection
A built-in pressure relief valve protects the closer against rough use.

Slide Arm
Available in this series.
Aesthetically appealling with lower opening force.

Hold-open
Available in this series.
Hold-open between 80° – 180°. Order arm assembly separate.

Handing
Non-handed.

Adjustment
Two control valves (latching and closing).

Drop Plate
Available in this series. A2600 – 180SIL.

Finish
Silver Baked Enamel – SIL

Fire Rated
This Yale Door Closer has been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 – Part 1: Fire Resistant Door sets.

NOTE: Hold-open option is not approved on any fire door.
