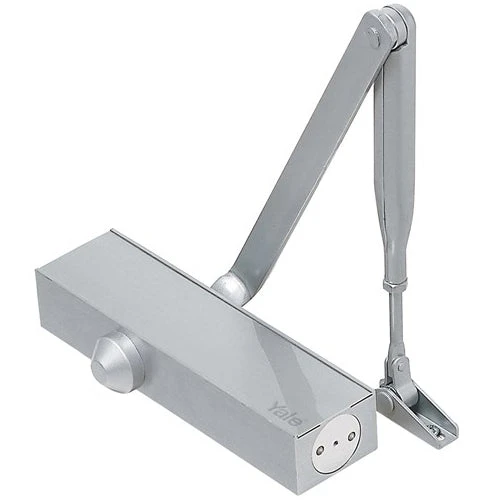

YALE A2400 SERIES POWER ADJUSTABLE HYDRAULIC DOOR CLOSER Door Closers

The Yale A2400 Series door closer will cater for a wide range of applications and door sizes. Ideally suited to doors in high traffic areas. With power adjustment range from 2-4 strength.

Slim neat design will complement most applications.

Each pack contains “Z” Type Parallel Bracket.

Adjustable Power
Closer spring power is adjustable for sizes 2-4.

Materials
High pressure diecast aluminium body. Heat treated steel rack and pinion. Forged steel arms passivated against corrosion.

Backcheck
Standard on this model.

Mechanism
Rack and pinion design.

Overload Protection
A built-in pressure relief valve protects the closer against rough use.

Slide Arm
Available in this series.
Aesthetically appealing with lower opening force.

Hold-open
Available in this series. Hold-open between 80° – 180°. Order arm assembly separate.

Handing
Non-handed. Suitable for left or right hand doors.

Adjustment
Two control valves (latching and closing).

Drop Plate
Available in this series. A2400-180SIL.

Finish
Silver Baked Enamel – SIL

Fire rated
This Yale Door Closer has been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 – Part 1: Fire Resistant Door sets.

NOTE: Hold-open option is not approved on any fire door.
