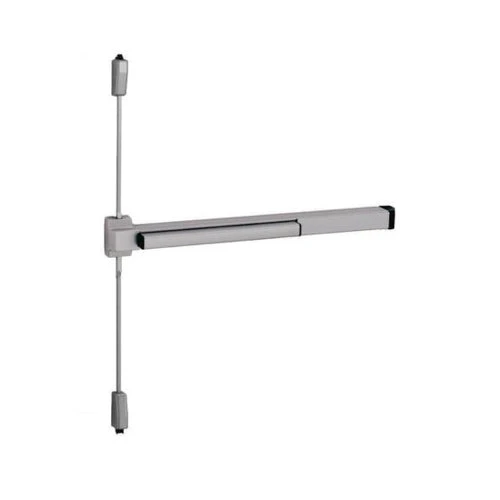

VON DUPRIN 22 SERIES VERTICAL ROD EXIT DEVICE Panic Exit Devices

The 22 Series are Von Duprin’s entry level exit devices, incorporating a modern touch bar styling for all types of doors. The 22 Series can be used on timber, aluminium or hollow metal hinged doors. Available in rim and surface vertical rod styles. The 22 Series is traditionally used in commercial buildings such as warehouses, factories, schools and shopping centres.

Features:

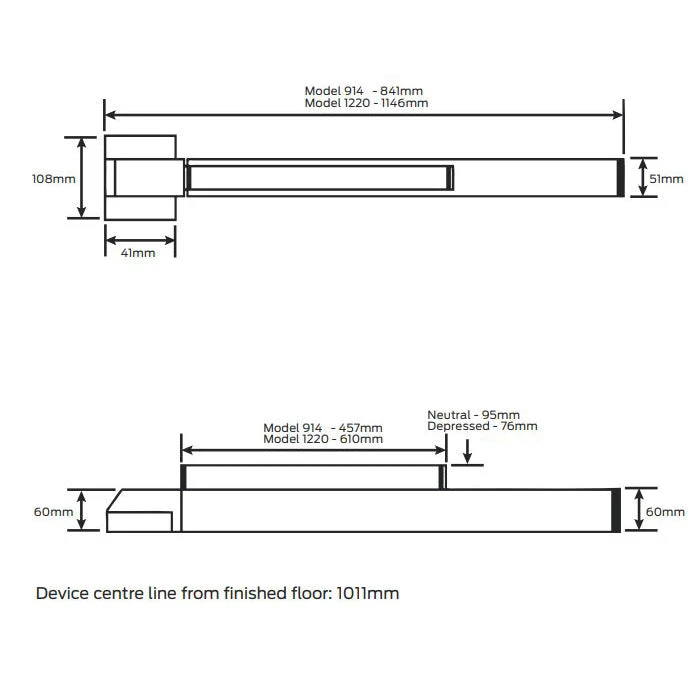

• Device centre line from finished floor: 1011mm
• Suitable for all types of single doors
• Can be used in conjunction with another 2227EO for double non-rebated door applications
• For rebated double door applications the 2227EO should be used in conjunction with a 22EO rim device and 1609 strike

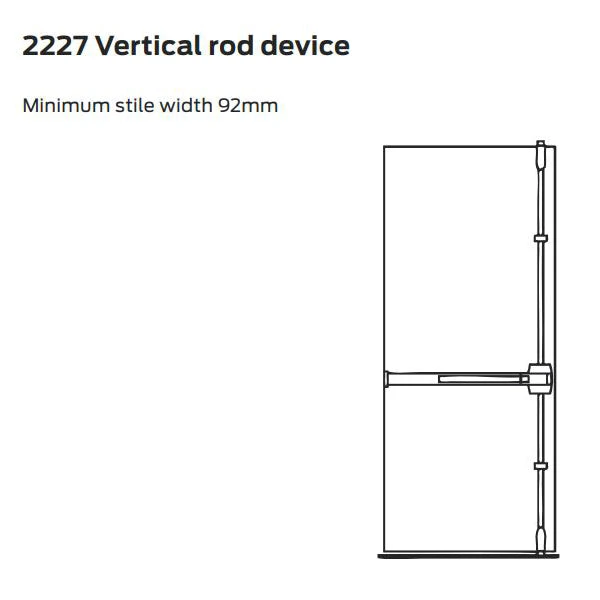

• Fits door stiles as narrow as 92mm
• When 2227EO is used in conjunction with 22EO and 1609 strike on double rebated doors, the minimum stile width is 111mm
• Field sizeable to accommodate a range of door openings
• Optional extension rods available for door over 2134mm high
• Multi-point locking device, with 16mm throw deadlocking anti-friction top and bottom latch
• The hex key dogging allows the latch to be held in a retracted position
• Supplied with 248L-4, 299 and 304L strikes as standard
• Optional outside trim and alarm kits are available
