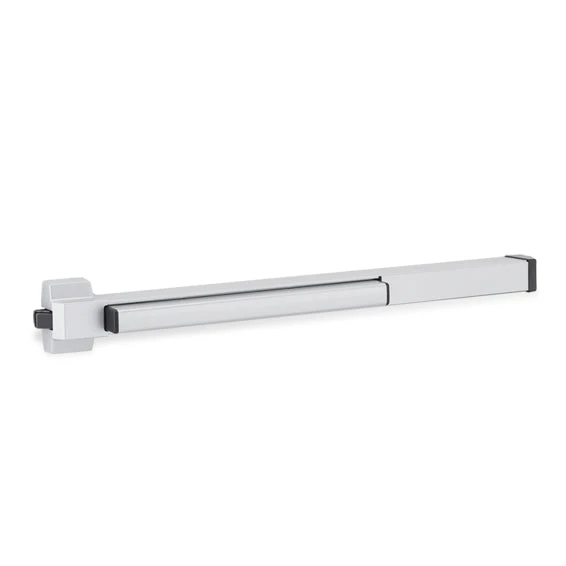

The 22 Series are Von Duprin’s entry level exit devices, incorporating a modern touch bar styling for all types of doors. The 22 Series can be used on timber, aluminium or hollow metal hinged doors. Available in rim and surface vertical rod styles. The 22 Series is traditionally used in commercial buildings such as warehouses, factories, schools and shopping centres.
Features:
- Non-handed
- Field sizeable to accommodate a range of door openings

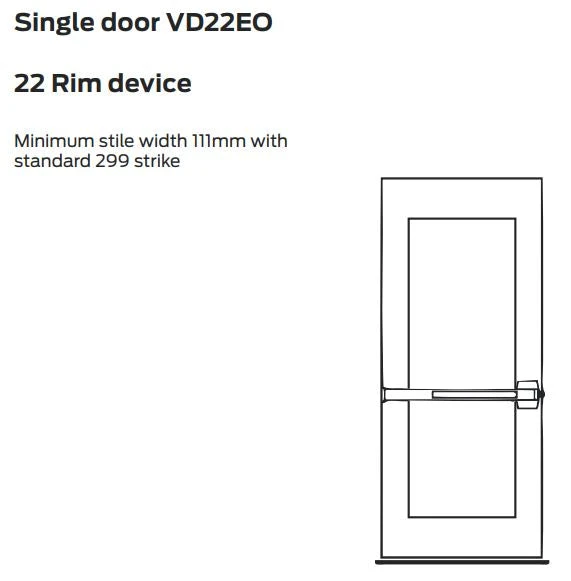

- Rim device has deadlocking latch with 19mm throw
- Vertical rod device has deadlocking latches with 16mm throw

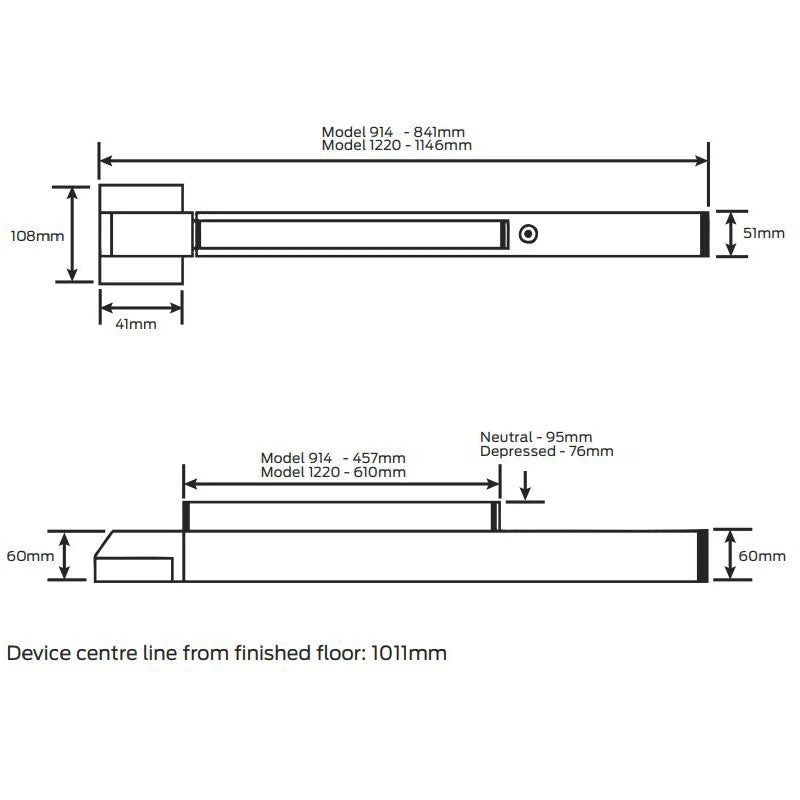

- Available in 914mm and 1220mm lengths to suit a range of door openings
- Vertical rod device suitable for doors up to 3050mm high when fitted with extension rods
- ‘F’ models are fire rated and have no dogging (hold open) feature
- Optional external trims available for key access
- Optional alarm kit available to deter unauthorised use of an opening
- The 10 year warranty provides specifiers and users with assured quality and performance
