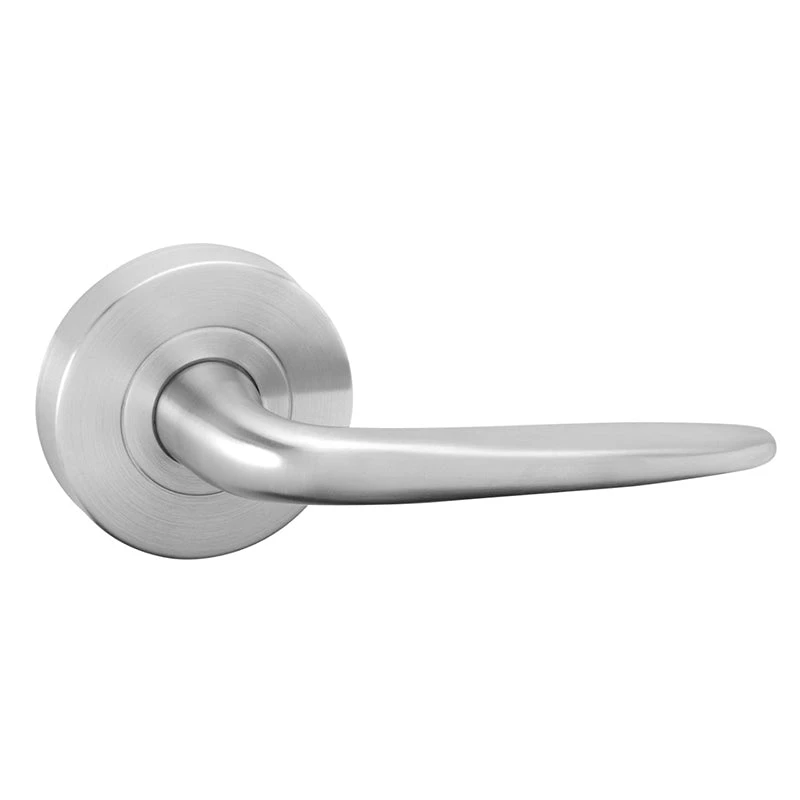

SCHLAGE GRANDE SERIES LEVER SET – DIVA

The new Schlage Grande Series is the perfect finishing touch to add style and splendour to any door in the home.

Combining ease of installation with contemporary and architectural designs, this series is not only aesthetically pleasing but incredibly durable and functional. Perfect for residential and light commercial applications such as retirement homes and apartments. The range is available in standard round rose, or square rose as an optional accessory. The Schlage commitment to product quality and integrity is your key to peace of mind, with all of our products designed to meet the most stringent quality standards and backed by extensive warranties.

Features:

• Available in five elegant lever designs
• 63mm rose to cover both 54mm and 25mm hole preparations
• Lever and rose constructed of high purity zinc alloy
• Can be used with both tubular latches or mortice locks
• Non-handed except Mila dummy trim
• Satin chrome plate square rose caps available in Alba and Stella (sold separately).
• Built in privacy push-button for ease of use
• Replaceable spring
• Centra lever is AS1428:1-2009 compliant

Functions:

• Dummy Trim – Inactive lever which is used as a door pull or matching trim
• Set Only (No Latch) – Two levers to be used with a latch, mortice lock or converted to dummy trim with fixing kit
• Passage Set – Supplied with 60mm backset passage latch. Both levers always unlocked.
• Privacy Set – Supplied with 60mm backset privacy latch. Push-button locks outside lever (outside emergency release). Inside lever unlocks door.

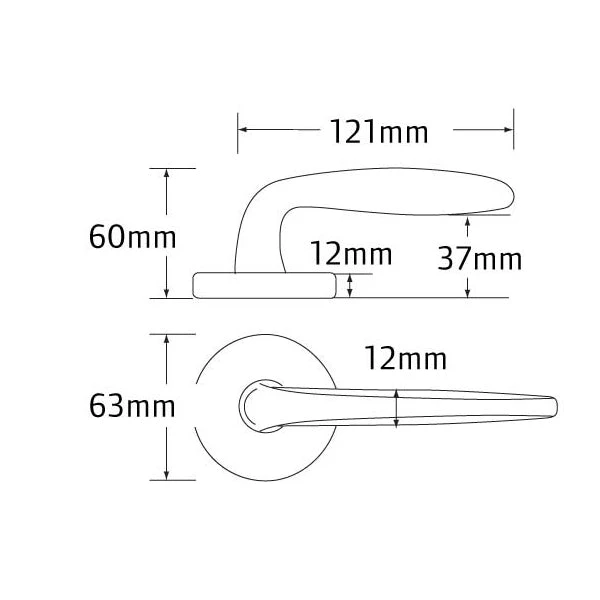

Specifications:

• Door type – Timber or metal
• Door thickness – Passage set 32mm to 50mm. Privacy set 32mm to 42mm
• Door preparation – 54mm or 25mm hole
• Backset – 60mm (standard) or 70mm (special order)
• Spindle size – 7.6mm
• Compatible locks/ latches – Tubular latches, ME Series mortice locks 990 Series mortice locks
• Fixing – Concealed through fixing
• Materials – Zinc die cast lever and rose
• Finishes – Satin chrome plate
• Warranty – 10 year mechanical and finish when used on residential applications
