SCEC/SEEPL Endorsed Locks LOCKWOOD PADDE ES9000 PRE-LOAD ELECTRIC STRIKE

Original price was: $420.00.Current price is: $96.99.

SKU: CCTV & Electronic 766200348721 Categories: Access Control, CCTV & Electronic, Electric Strikes, Locking Solutions, SCEC/SEEPL Endorsed Locks Tags: Access control, Electric strikes, Lockwood, Scec/seepl

No Compromise on Quality
Service that stands out, online and always timely.
Protecting Your Payment Information
Free Shipping, Quality Goods

Description
Reviews (0)

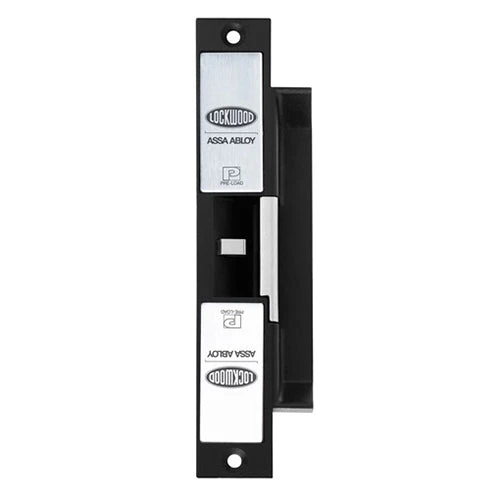

Lockwood Padde Series ES9000 Pre-Load Electric strike

The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.

Standard features include multi voltage 10 – 30Vdc and field changeable settings from fail safe to fail secure.

Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

Key Features

Operates under pre load up to 25kg
Easy field selectable fail safe/fail secure
Multi voltage 10-30Vdc
1300kg holding force
2.5 million cycles endurance rating
Latch keeper is significantly quieter in operation
Weather resistant
Mounting tabs as standard
Non handed
TRICARE® 5 Year Warranty
Weather Resistant (IP54)
Built in Protection Diode

Applications

High traffic areas
Doors subjected to side load (pre load)
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems

Standards and Compliance

S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
CE Approved
C-Tick Certified
IP 54 Rating
SCEC Approved for Security Level 3

Specification

Voltage
10 – 30Vdc

Current
250mA @12Vdc – 130mA @24Vdc

Solenoids
Solenoid rated for continuous use

Electrical protection
Polarity and back EMF protected

Monitoring
Solenoid Monitor – 1 amp NO/NC microswitch
Door / Latch Monitor – 1 amp NO/NC microswitch

Holding force
1300kg static strength rating

Endurance
1,200,000 cycles endurance rating @ 25kg pre-load
2,500,000 cycles general durability without pre-load conditions

Latching
Suitable for 15mm latch with 3mm door gap

Environment
Operational temperature range – 20C to +60C

Body
Solid Stainless Steel Construction

Keeper
Stainless Steel

Specification Statement
The electric strike should be fully monitored and have independent door / latch and solenoid monitor switches. Holding force for the strike should be not less than 1300kg.

Where Power to Lock and Power to Open functions may be required in the same building, a single electric strike should be interchangeable from either fail safe or fail secure from the rear of the strike.

The electric strike should not consume current greater than 250mA @ 12Vdc and have a solenoid rated for continuous use. A fire rating not less than 4 hours is required where applicable. The strike must be capable of operating with up to 25kg of pre-load pressure applied to the keeper, be tested to 2.5 million operations and carry a minimum warranty of 5 years.

_________________________________________________________

Dimensions

SCEC/SEEPL Endorsed Locks LOCKWOOD PADDE ES9000 PRE-LOAD ELECTRIC STRIKE -Deals The Lock Shop ES9000%20Strike%20diagram%2001
