RAVEN PERIMETER SEAL RP120
Original price was: $44.00.$33.00Current price is: $33.00.
- No Compromise on Quality
- Service that stands out, online and always timely.
- Protecting Your Payment Information
- Free Shipping, Quality Goods
Delta Seal ™

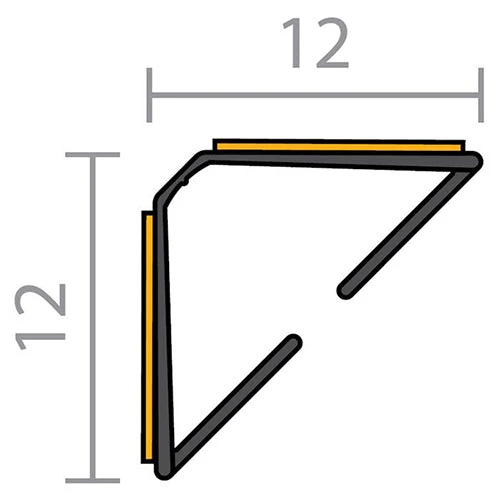

RP120 is a co-extruded PVC acoustic and smoke seals. Discreetly located in the protected corners of rebated timber or steel door and window frames. RP120 is suitable for new and retrofit applications.
Can be used in conjunction with Raven door bottom seals and astragals and threshold plates.
Location: Around rebated frames of single and double butt hinged doors and windows.
Min/Max Gap: 3mm to 5.5mm.
Fixing: Aggressive self adhesive backing tape on both sides of the carrier.
Note: Contact surface must be clean, smooth and if painted, well cured.
Seal: Black co-extruded rigid and flexible flame retardant PVC.
Sizes: Available in door set sizes.
Approvals
UL Cert. GVYI.R37913.
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. (Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22).
FRL & FRR-/240/30 and FD240.Fire Approved
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
| Accoustic Rating to AS1191 and ISO140.3 | Acoustically tested in accordance with AS1191, ISO140.3 & ISO10140-2 |
| Colour | Black |
| Finish | Black |
| Fire tested, check with manufacturer for further details. | Yes |
| Includes Fixing Screws | NA |
| Material | PVC |
| Max Door Gap | 5mm |
| Min Door Gap | 3mm |
| Suitable for Smoke Doors | Conforms to NCC Specification C3.4 smoke sealing requirements |
| Warranty | self adhesive fixing not covered |
| Length | Single Door Set (1 x 1000mm, 2 x 2100mm), Long Single Door Set (1 x 1000mm, 2 x 2750mm), Double Door Set (3 x 2100mm), Long Double Door Set (1 x 2000mm, 2 x 2750mm) |
|---|
