RAVEN AUTOMATIC BOTTOM DOOR SEAL RP8SI (CLEAR ANODISED) Door Seals

Name: Experience Luxury with 100% Premium RAVEN AUTOMATIC BOTTOM DOOR SEAL RP8SI (CLEAR ANODISED) Door Seals in North Carolina United States.
SKU: Door Seals 191947317
Price: 37.80 USD
Availability: InStock

Original price was: $60.00.Current price is: $37.80.

Size

Clear

SKU: Door Seals 191947317 Categories: Door Seals, Handles & Hardware Tags: Raven, Size-1220mm-cuts-back-to-1070mm, Size-1500mm-cuts-back-to-1220mm, Size-600mm-cuts-back-to-380mm, Size-920mm-cuts-back-to-820mm

No Compromise on Quality
Service that stands out, online and always timely.
Protecting Your Payment Information
Free Shipping, Quality Goods

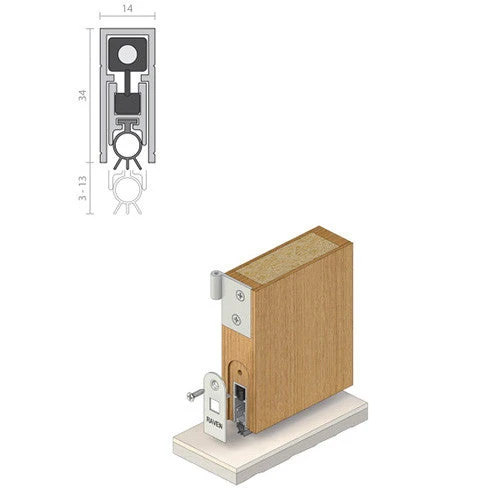

A concealed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb on its adjustable strike. RP8Si can also be fitted into the bottom rail of a metal door by the fabricator. Has a level adjustment to achieve an optimum seal.

Location: Fully morticed into a 15mm x 34mm groove into the bottom of single and double butt hinged timber and metal doors.

Min/Max Gap: 3mm to 13mm.

Finish: Clear Anodised (silver)

Fixing: Concealed screw fix with colour matched stainless steel escutcheon plates and screws supplied.

Seal: RP308Si. Grey silicon rubber (SE).

Sizes: 1220mm, 1070mm, 920mm, 820mm, 600mm, 380mm to 295mm(min). Seals can be cut back to the size below.

Approvals
Cert. GVYI.R37913
ANSI/BHMA A156.22
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
FRL & FRR-/240/60 and FD240. Fire Approved
Gasket flammability index 1 when tested to AS1530.2.
Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
Energy NCC Pt. 3.12.3.3 & J3.4.
Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
Durability Tested to over 1,000,000 operating cycles without failure.

Patented.

Home | Hardware | Door Seals | Raven

Size	600mm (Cuts back to 380mm), 820mm (Cuts back to 600mm), 920mm (Cuts back to 820mm), 1070mm (Cuts back to 920mm), 1220mm (Cuts back to 1070mm), 1500mm (Cuts back to 1220mm)
