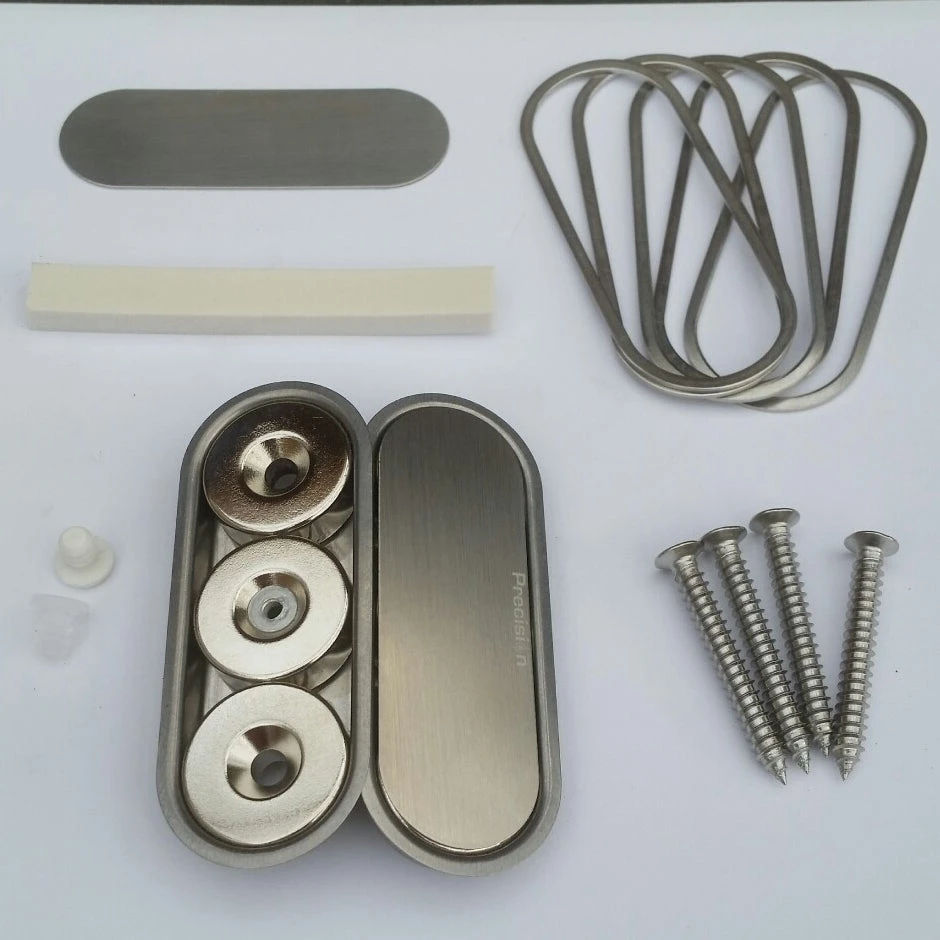

PRECISION PLS24PRO-XHD EXTRA HEAVY DUTY CONCEALED MAGNETIC CATCH

Extra heavy duty concealed magnetic catch suitable for large/heavy

Interior doors, heavy pivot doors, entrance doors etc.

• Can be used anywhere a roller/ball catch etc. would normally be fitted.
• As magnets don’t touch (after installation)
  – the catch will never wear out!
  – Lifetime guarantee (for magnetism).
  – can be painted over.
• No latch noise when opening and shutting door (unlike a roller/ball catch)
• Completely concealed when door closed, no unsightly protruding strike plate lip (unlike a roller/ball catch).
• Can be used to help keep problem doors shut (e.g. with weak door
  closers, electric strikes, weak roller mortice locks).
• Patented new design/installation procedure – Much easier and faster to install than traditional ‘rectangular face’ roller/ball catches and rectangular strikeplates etc, due an innovative and patented design/installation process that uses mainly drilling with a 24mm(15/16″) spade or forstner drill bit, and only a minimal amount of chiseling to create the recesses required to flush mount the magnetic assemblies (FIG 1).
• Power adjustment spacer rings – Increase magnetic holding strength by fitting power adjustments rings (under flanged lip of magnetic assembly) as required. (See FIG 1.4).
  5x (1mm thick) S/steel rings supplied for precise power adjustments.
• Self Adhesive Cover Plate (Brushed S/Steel)
  – Protects magnets from impact damage during installation.
  – Protects magnets from corrosion.
  – Conceals magnet and screw head for a more attractive finish.
  Adhesive: 3M9448A – provides very high bonding strength and excellent
  durability.
• Poron Xrd Foam impact absorption pad (sold separately)
  – Use (esp. with double doors) to further reduce impact noise and
  bouncing of door on frame when shutting.
  – Low compression set – After impact, foam pad will return to its
  original thickness indefinitely.
