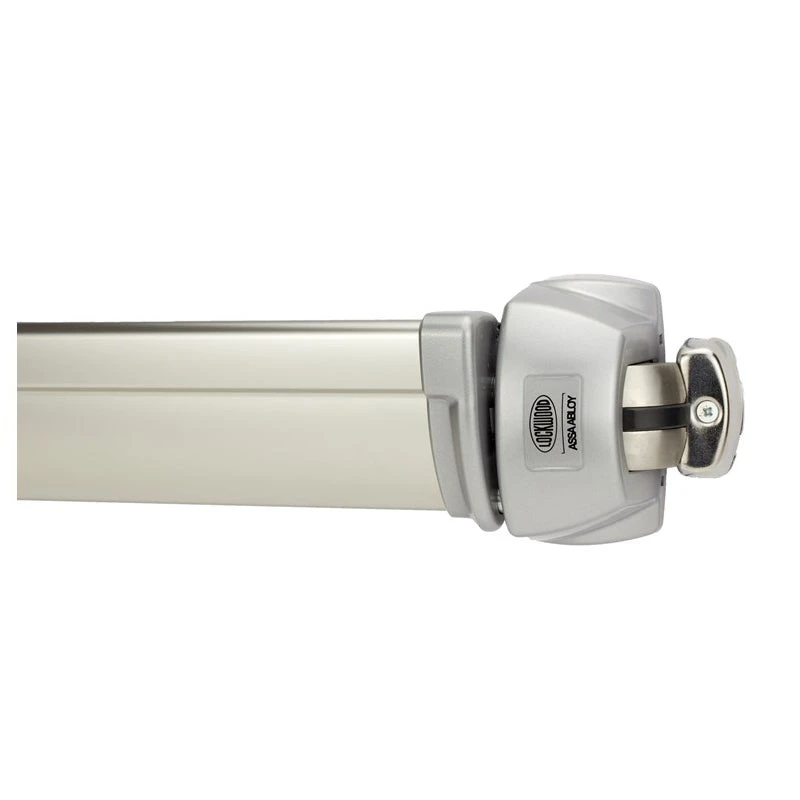

Panic Exit Devices LOCKWOOD FLUID FE100 SINGLE POINT RIM EXIT DEVICE

The next generation in the Lockwood Panic Exit Device range, the FLUID Series provides for the fundamental means of escape whilst offering a completely unique locking mechanism and design aesthetic. With this type of unique innovation, ASSA ABLOY continues to evolve in standardising the market. The Lockwood FLUID Exit Device range combines ergonomics and performance with a completely new type of axis mechanism and high security bolt system.

Non-stocked item. Please allow 5-7 business days for dispatch.

The FE Single Point Series is a one point locking device which provides for an escape function at all times by way of pushing a horizontal bar fitted to the door. For single or double leaf doors. To suit two standard widths 900mm & 1200mm doors. Cylinder Dogging optional. Note: Euro Profile Cylinder sold seperately For applications requiring an external trim, please order separately FE5000*** Series Trim Kit External nightlatch (cylinder only) available Dec 2017

Features

• Brushed Stainless Steel Bolt
• High level of resistance. Up to 500kg to each latching point.
• Tested to 1,000,000 cycles
• Auxiliary bolt activation from 1mm
• Effortless opening < 20N required
• Available in both vertical and horizontal latching positions in 2/3 point configurations
• Bar can be cut down to 350mm
• New fixing bracket and template design reduces installation time by up to 50%
• Protect. Evacuating people safely
• Secure. High vandal resistance
• Optimise. A simple and efficient installation process

Standards and Compliance

• Successfully tested on fire door assemblies in accordance with Australian Standard AS1905.1-2005. Fire Resistant Doorsets.
• Conforms to the standards as setout in CE EN1125 -2008.
