Description

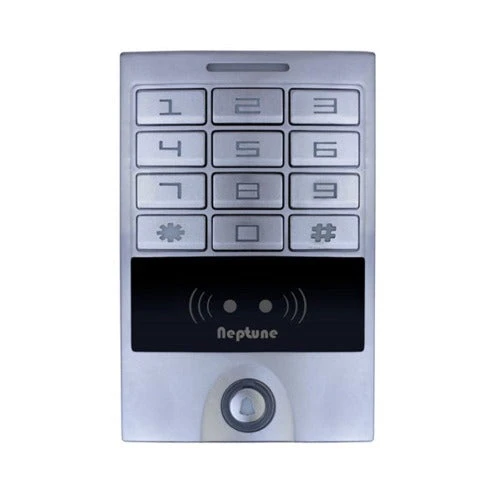

The ACKPWSKWM is a single relay access control keypad supporting up to 2000 users with a Mifare 13.56Mhz card reader.
The fully potted strong aluminium alloy structure makes this anti-vandal, waterproof keypad ideal to be fitted in any domestic or commercial location, both indoors and outdoors
- 2000 Users.
- IP65.
- Input voltage: DC12~24V.
- Idle current: ≤35mA.
- Proximity card: Mifare.
- Reading range: 2-6 cm.
- Frequency: 13.56MHz.
- Wiegand input & output format: 26-37 bit.
- Keypad output format: visual card No; 4 bits or 8 bits of data, single key pressing.
- Dimensions: 159 (H) x 43 (W) x 21.7 mm (D).
- Operating Temperature:-20~60℃.
- Operating Humidity:0~95%(non-condensing).
