N2LOK MAISON ENTRANCE SET – CHARENTE

Please Note – Venetian Bronze not due until March 2022. Can be ordered and left on Back order.

N2LOK CHARENTE

Forged Brass Entry Set

Available finishes:

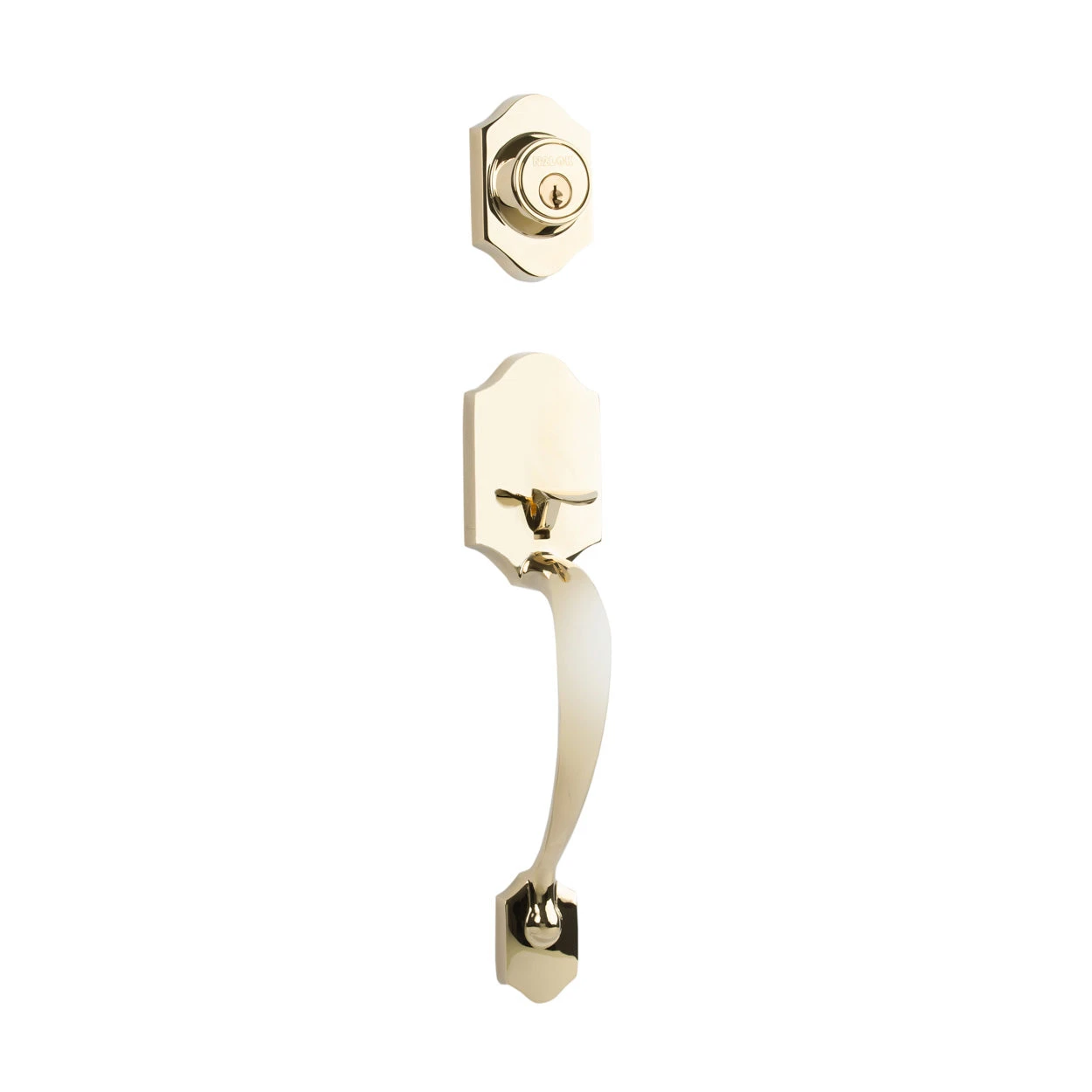

•  Polished Brass

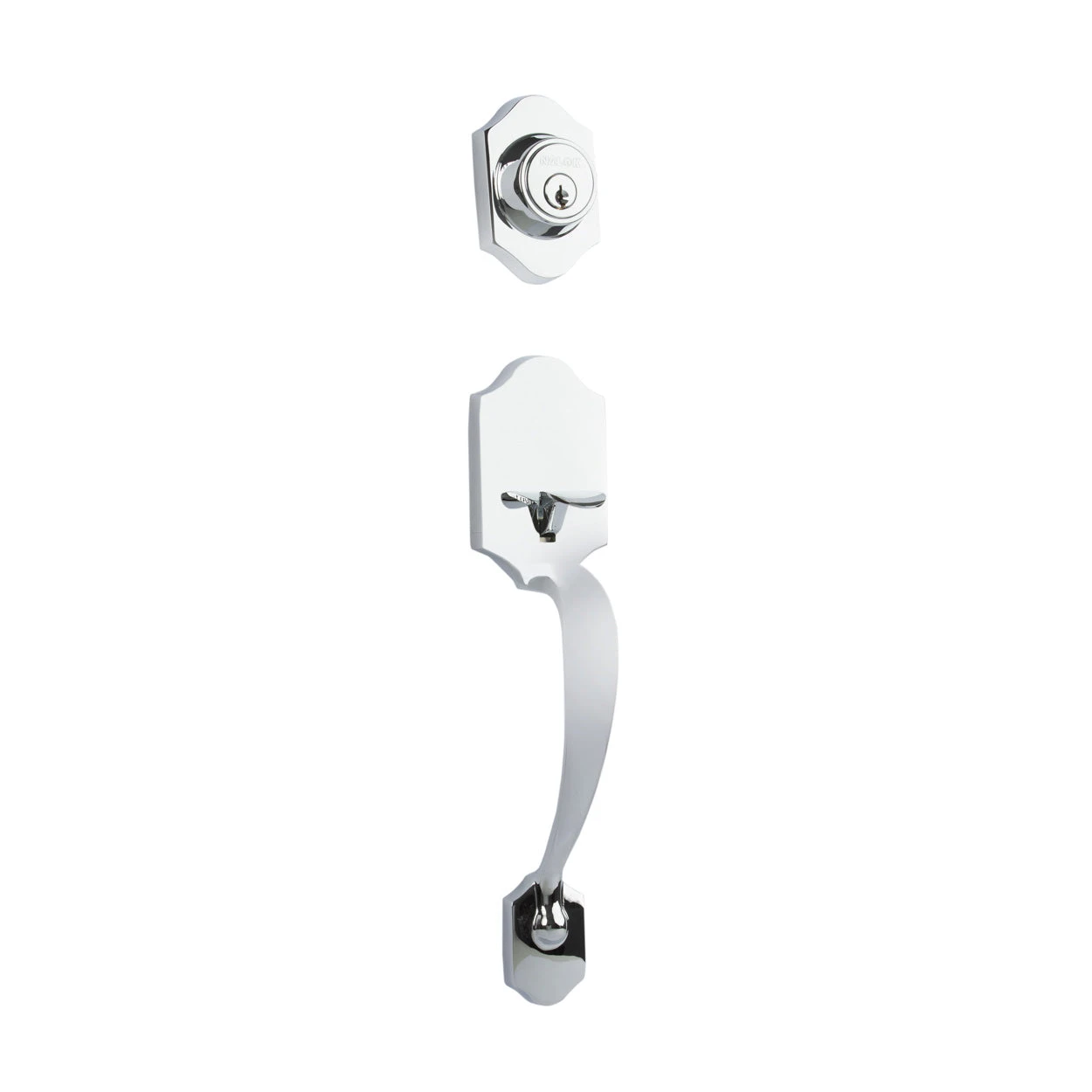

•  Polished Chrome
•  Satin Nickel

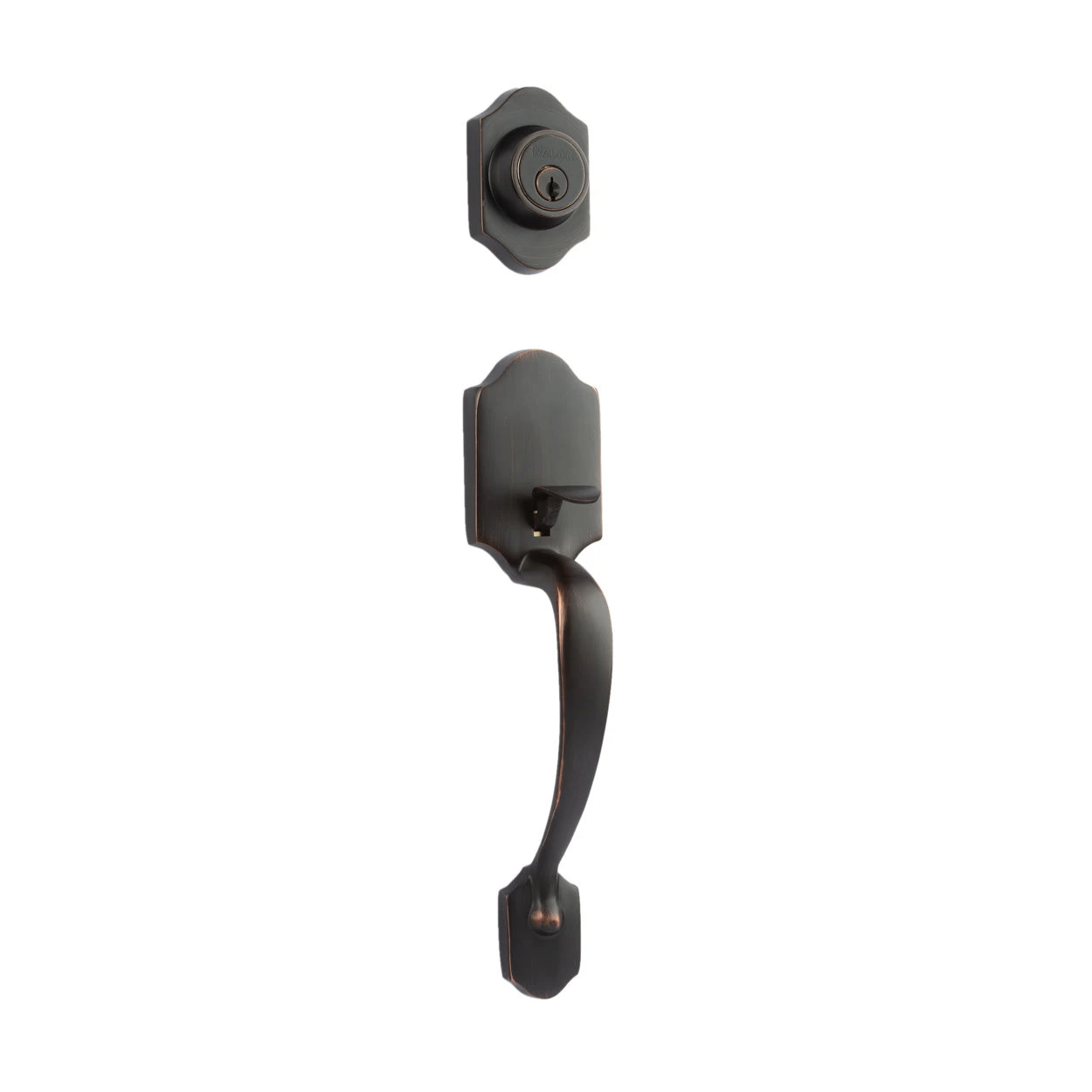

•  Venetian Bronze

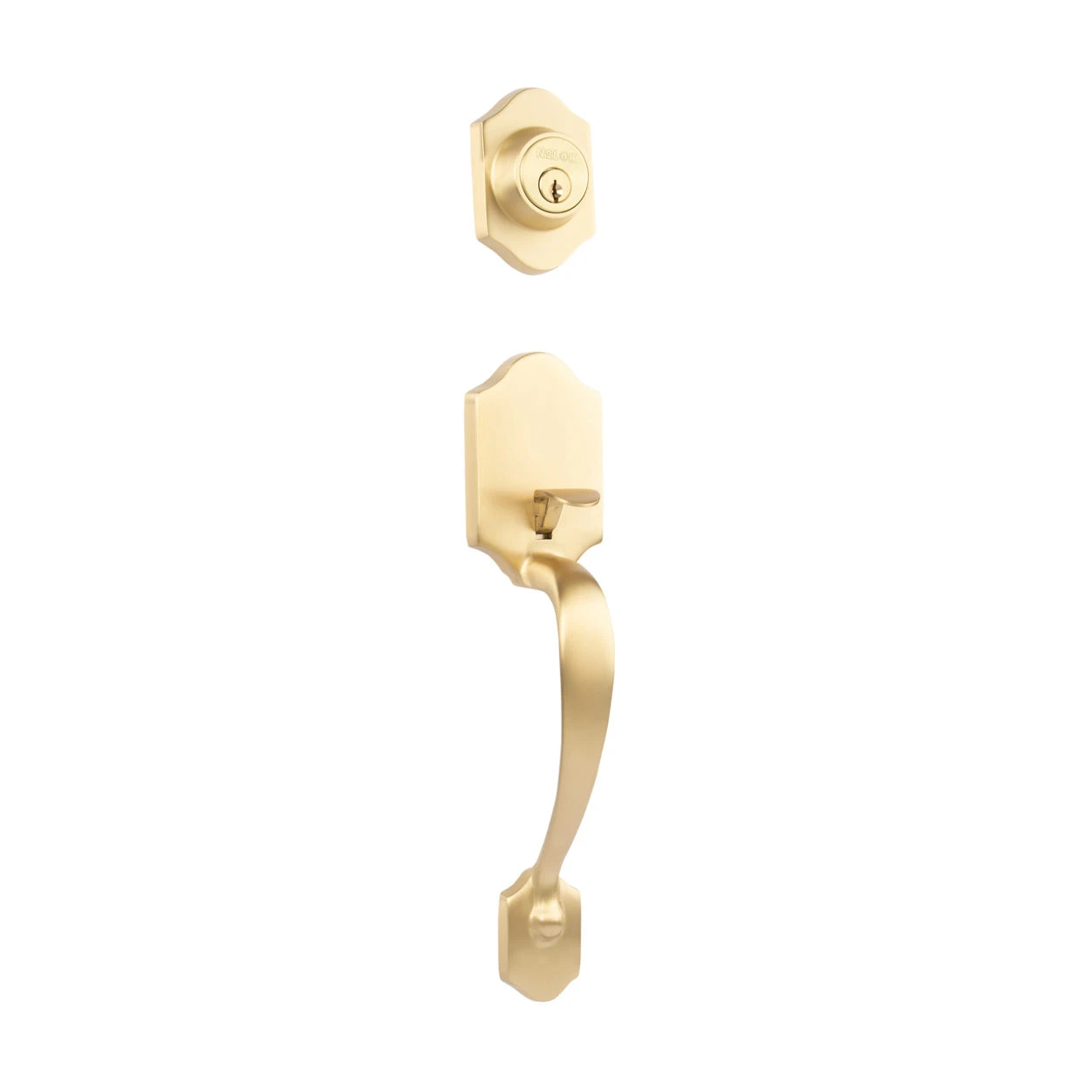

•  Satin Brass

Key Features:

• The Charente entry set is made of solid forged brass substrate for enduring style & strength

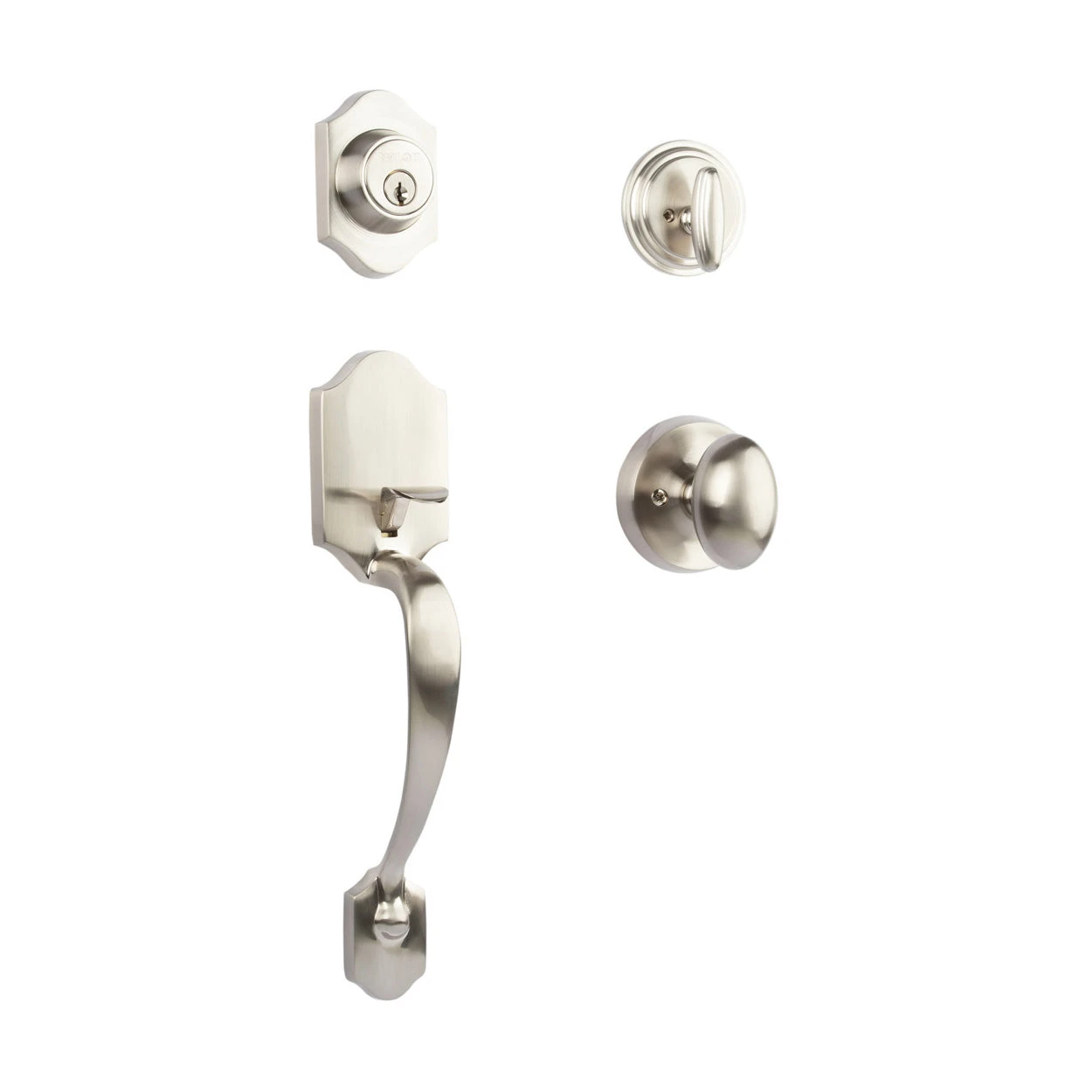

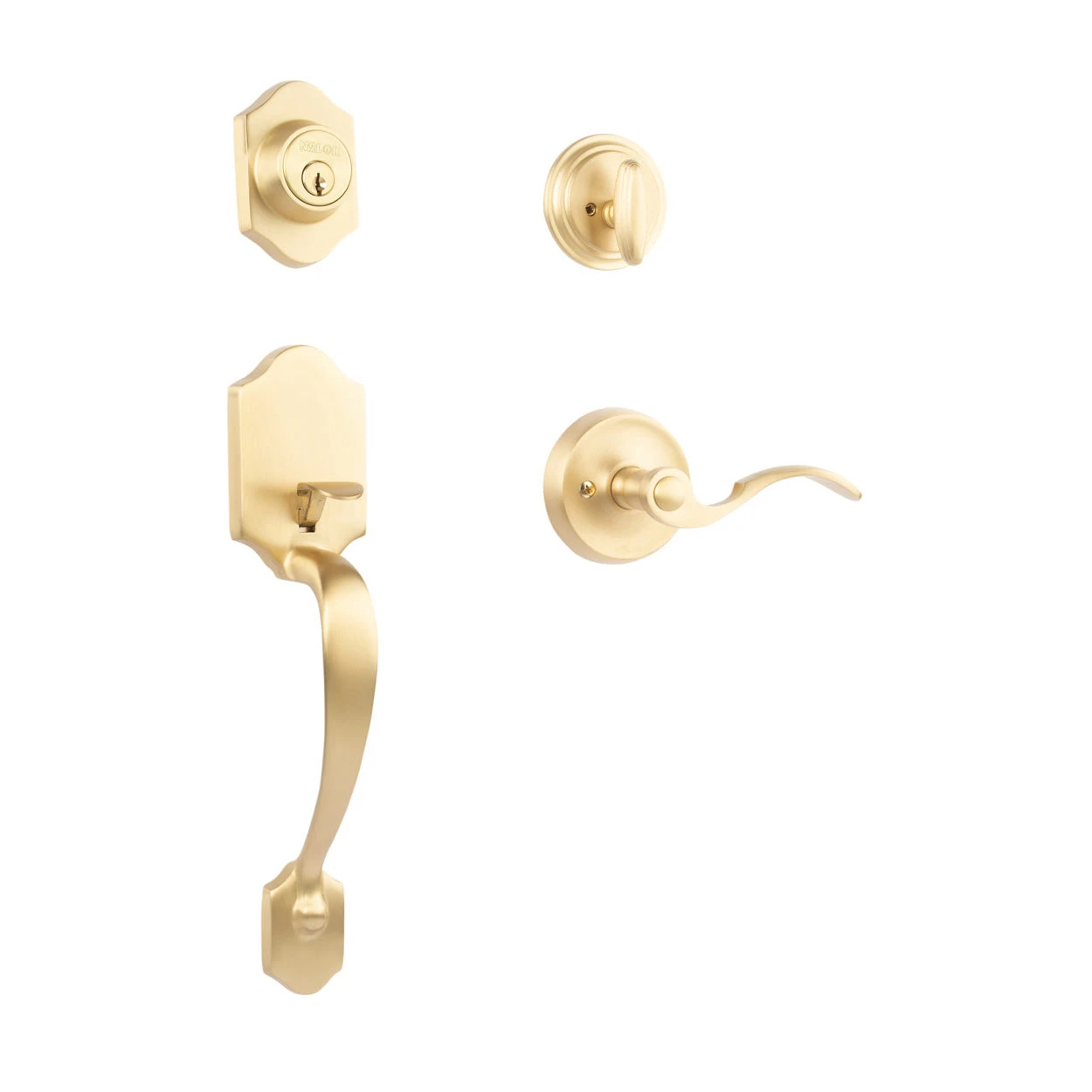

• Supplied with the “wave” internal lever as standard. Also available with a egg knob in place of the lever. (Egg knob not available on Interconnecting Set)
• Forged brass is 250% stronger than cast brass
• 6 pin solid brass cylinder with the popular C4 keyway for more security
• 3 identically cut keys supplied with each entry handle suite
• Adjustable 60mm to 70mm backset on the spring latch & dead-bolt latch
• Smart non-handed lever design means 1 set suits both left & right hand door installations
• Easy to install with clear instructions & template
• Suitable for door thickness 35-45mm (Extension kit available upon request)
• Warranty 5 years on finish & 7 years on mechanical

Functions:

Single Cylinder – Deadbolt is operated by key on external side and by thumb turn on internal side.
Double Cylinder – Deadbolt is operated by key on both external and internal side.
Dummy – Non locking set to be installed to the non-locking leaf of a set of double doors.
Interconnecting Set – Similar to single cylinder function ie. Deadbolt operated by key outside and thumb turn inside. However, interconnect has an added function that makes it different to a standard single cylinder deadbolt. It’s added function is a deadbolt and spring latch that retracts simultaneously when the internal lever/knob is turned to open your door. Also features matching long internal plate to match external plate.

Dimensions:

EXTERNAL Handle:

Deadbolt Escutcheon 60mm wide x 90mm high with a projection of 30mm.

Grip Handle escutcheon with thumb tab 63mm wide x 110mm high with a projection of 61mm & the overall length of this bottom section at 310mm.

Recommended Center to Center spacing between Deadbolt & grip Handle Spring Latch is 140mm  & using this recommended spacing gives you a total length of 420mm.

Internal Wave Lever has a projection of 60mm & is 115mm long on a 75mm diameter round Rose Plate.
