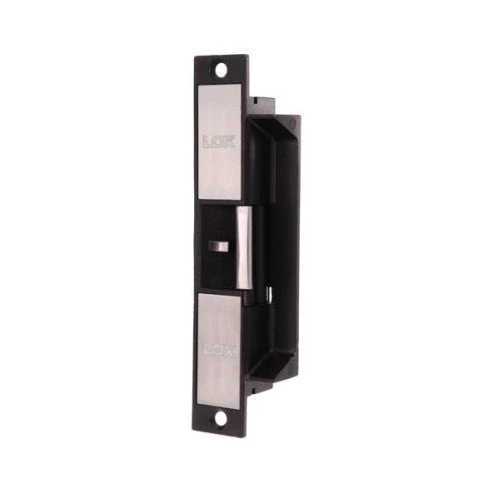

LOX LES20M ELECTRIC STRIKE 10-30VDC (MONITORED) CCTV & Electronic

The LES20M series electric strikes are designed for use with all access control systems.

The LES20M series now come with a 10 mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15 mm lip. A 5 mm lip extension is included with the strike if needed.

Fail safe/fail secure is changeable on site.

Suitable for use on hinged doors to work with a extensive range of locks.

 Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .

Features:

• Multi voltage 12~36V DC.
• Current 12V DC @ 220mA, 24V DC @ 120mA, 36V DC @ 80mA.
• Monitored:
  Door latch monitoring (DSS)
  Lock status monitoring (LSS)
  Anti-tamper sensor (ATS).
• Fire rated up to 4 hours.
• Power to lock/power to open field selectable.
• Stainless steel construction.
• Solenoid can be continuously powered.
• Optional extension lips.
• Self adhesive installation template.
• Includes tab mounting kit.
• Pre-drilled for extension lips.
• Holding strength of over 1490kg.
• Supplied with silencer rubber buffer.
• LES20M is suitable for 18 mm latch with a 3 mm door gap.
