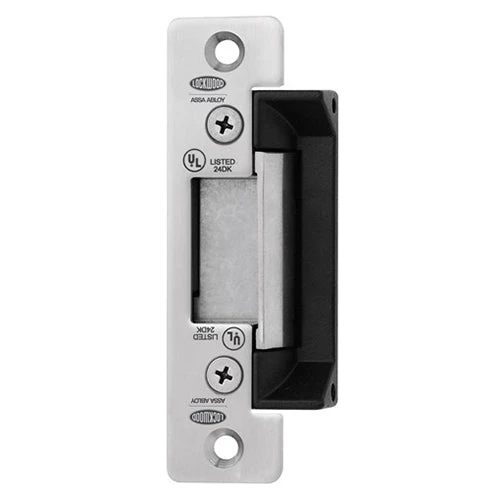

LOCKWOOD PADDE ES110 ELECTRIC STRIKE 12/24VDC FAIL SAFE NON MONITORED CCTV & Electronic

Original price was: $175.00.Current price is: $97.99.

SKU: CCTV & Electronic 206164517 Categories: Access Control, CCTV & Electronic, Electric Strikes Tags: Access control, Electric strikes, Lockwood

No Compromise on Quality
Service that stands out, online and always timely.
Protecting Your Payment Information
Free Shipping, Quality Goods

Description
Reviews (0)

The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.

Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. The ES110 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.

Key Features

All models IP56 Weather resistant
Fail safe/fail secure changeable on site
Stainless steel striker for extra strength and durability
Stainless steel locking pins
Multi Voltage 12Vdc & 24Vdc
Optional mounting kit
Installation template
Suitable For 18mm latch with a 3mm door gap
TRICARE® 5 Year Warranty

Applications

Exposed areas
High traffic areas
Open in/open out doors
Suitable for use with all access control systems

Standards and Compliance

Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1.2005 (Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
C-Tick Certified
Weather Resistant (IP56)

Specification

Voltage
12Vdc & 24Vdc

Current
250 mA @ 12Vdc – 125mA @ 24Vdc

Solenoid
Solenoids are rated for continuous use.

Monitoring
None

Holding Force
680 kg Static Strength Rating

Endurance
Cycle tested to 1,000,000 operations

Environment
Operational temperature range -20°C to + 60°C
Weather resistant construction Standard. (IP56)

Body
Cast Aluminium Construction

Keeper
Stainless Steel

Latch
Suitable for 15mm latchbolt with 3mm door gap

Specification Statement
Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either “Power to Lock” or “Power to Open” on site. The electric strike should not consume current greater than 250 mA @ 12Vdc – 125mA @ 24Vdc and have a solenoid suitable for continuous use. Certifications must include CE, C-tick and 4hr fire rating. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.

_________________________________________________________

Dimensions

LOCKWOOD PADDE ES110 ELECTRIC STRIKE 12/24VDC FAIL SAFE NON MONITORED CCTV & Electronic -Deals The Lock Shop ES110%20Strike%20diagram%2001
