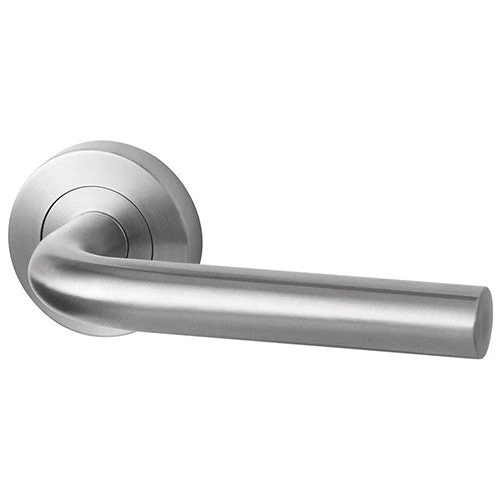

LOCKWOOD OVATION SERIES DOOR FURNITURE – LEVER H11 TULU Handles & Hardware

*Special Order item – please allow between 5-10 business days for dispatch of this product*

Lockwood Ovation Series Round Rose Door Handles

• 55mm round rose (only suitable for fresh installs or to cover existing holes less than 45mm in diameter.)
• 10 lever styles
• 304 stainless steel.

The Ovation Series has been designed in Australia to meet the aesthetic requirements of the Australian consumer in both residential and semi-commerical building segments.

Features of the Ovation Series Rose Door Furniture

• A threaded rose trim provides concealed fixing on both internal and external sides of the door.
• Successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1 2005 – Part 1: Fire Resistant Doorsets.
• Anti-Corrosion
• Available with a complement of Cylinder and Turn Escutcheons
• Latch Sold Separately

Lever Dimensions (Hollow)

Length: 136mm
Projection: 72mm
Finger clearance: 53mm

Rose Dimensions

55mm diameter x 12mm

Suitability

• Suitable for use in commercial and residential buildings.
• Designed and manufactured for use with Lockwood Selector 3770 & Synergy 3570 Series mortice locks and 5260 tubular latches.

Handing
A removable stop screw allows all symmetrically designed levers to be handed on site.

Materials
304 stainless steel.

Fixing
Roses are designed to fit back to back and fixings are concealed by the use of a screw on outer rose.

Door Thickness

• 32mm minimum for Lockwood 3770/3570 Series Mortice Locks
• Maximum door thickness 45mm

Standard Finish
Satin Stainless Steel SS
