*Please note this is a made to order product. Please allow between 10-15 business days for this to be dispatched.

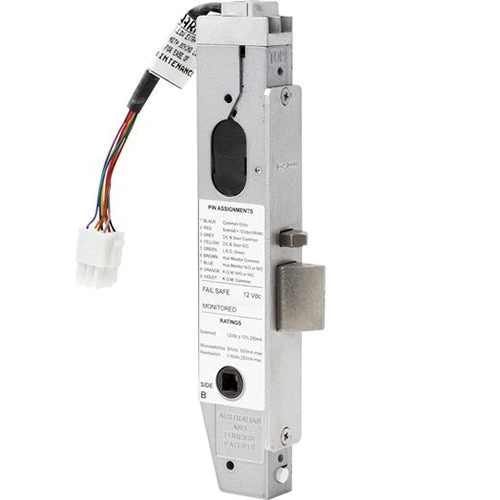

Designed and manufactured in Australia, the 3580 series electric mortice is a high performance lock of superior quality. It is constructed from high grade zinc alloy, with a stainless steel latch bolt and face plate and is suited for all commercial applications.

The lock can be operated by push buttons,intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

The 3580 series is available in a wide variety of configurations to suit varying requirements and is especially suited to narrow style or short backset applications.

Key Features

Available in non monitored and monitored versions.

Monitoring features

Dead latched
Door position/reed switch
Key override
Request to exit/REX

Available configurations

Fail safe or fail secure
12Vdc or 24Vdc
Field changeable monitoring contacts – normally closed, normally open
Field changeable handing – Left hand and right hand doors
Selection of free lever or locked lever on both sides of the door
Key override monitoring
LED indication

Standards and Compliance

S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
C-Tick Certified

Specification

Voltage
Available in 12Vdc or 24Vdc

Current
12Vdc ± 5% 250mA (max)
24Vdc ± 5% 125mA (max)

LED Current
When LED’s are fitted, add 15mA (max) to total current draw

Monitoring
Key override
Deadlatched and door closed
Request to exit
Hub/Deadlatch/Key override monitor: max ratings 500mA at 30Vdc
Door Status Monitor: max ratings 3W, 250mA (max) at 12Vdc,
125mA (max) at 24Vdc

Environment
Operational temperature range -20°c to + 60°c

Case/Cover
High purity zinc alloy construction

Backset
23mm standard. 25.4, 30 & 38 mm extended available

Latch bolts
15mm Stainless Steel construction

Door Clearance
3 – 6.5 mm

Door thickness
Standard applications 32 to 50mm
Extension kits available

Cylinder
Standard Lockwood oval shaped cylinders

Cabling
3.6 metre length of cable with 9 pin socket supplied with each lock.
Recommended cabling: 18AWG (0.82mm²) cable runs up to 30m

Furniture
Compatible with Lockwood series door furniture

Standard Finishes
Satin Chrome(SC) standard. Bright Chrome (CP) and Polished Brass(PB) finishes available

Note: For detailed electrical specifications, please refer to catalogue.

Specification Statement
The lock should be capable of operation on voltages of 12 or 24Vdc and have a current consumption not more than 250mA (max) @12Vdc and 125mA (max) @24Vdc. Monitored locks must be capable of monitoring the following functions: Key override, door position/reed switch& independent hub/ Request to exit. All monitoring outputs must have the ability to be wired independently. The lock must be capable of operating fail safe or fail secure, left or right hand, and have field configurable hub selection.

_________________________________________________________

Dimensions

LOCKWOOD 3580 SERIES ELECTRIC MORTICE LOCK CCTV & Electronic -Deals The Lock Shop 3580%20Electric%20Mortice%20diagram
