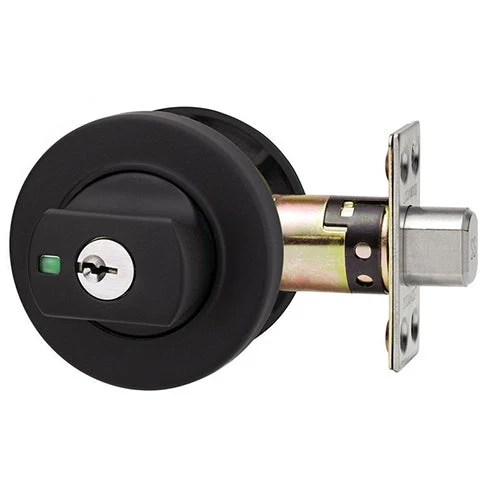

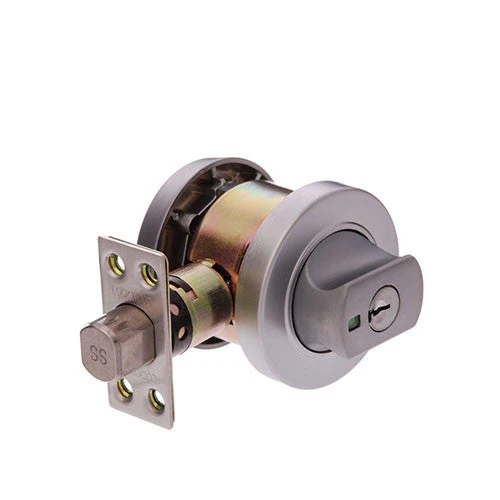

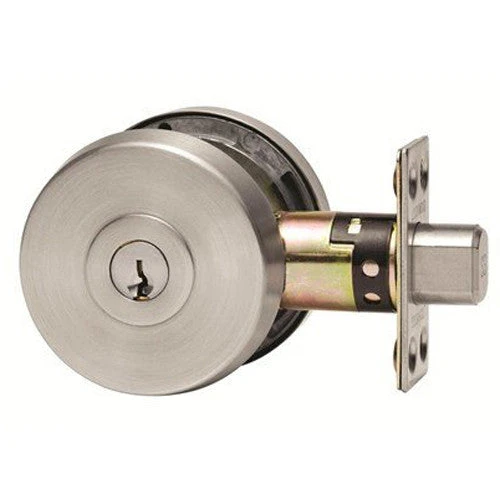

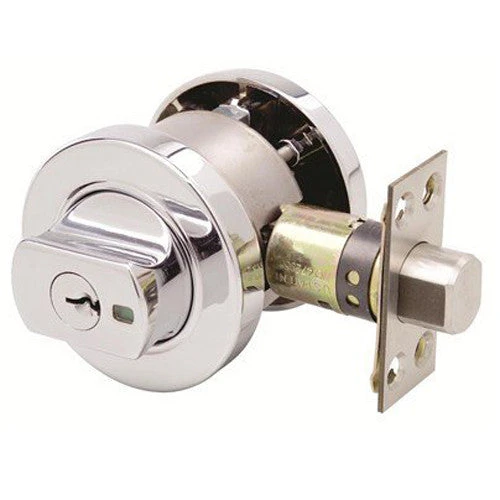

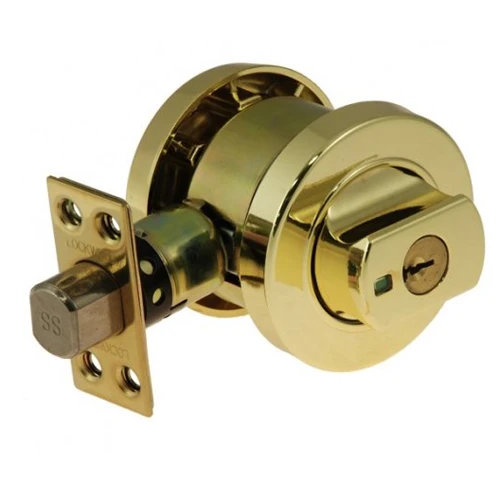

Locking Solutions LOCKWOOD 005 PARADIGM DEADBOLT ROUND

Designed in Australia, the Paradigm 005 Double Cylinder Deadbolt represents the pinnacle in deadbolt security products.

Incorporating innovative safety features including Safety Release™, LockAlert® and DualSelect®, the 005 Double Cylinder Deadbolt is ideal for residential and architectural applications.

Features of the 005 Double Cylinder Deadbolt

• Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
• Multi-mode slimline deadbolt providing safety, security and convenience
• Simple to install
• High security cut resistant stainless steel bolt
• Available in round or square designs
• Box strike with concealed cross-grain door frame strengthening screw
• Bolt throw 16mm +/- 1mm
• Can suit a rebated door – Click here

LockAlert The 005 Deadbolt incorporates Lockwood’s patented LockAlert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes:

Secure Mode Locked from the inside and outside.

Safety Mode Locked from the outside and free to exit from inside.

Passage Mode Free to enter from outside and free to exit from inside.

DualSelect® Turn the key for safety mode.Turn the key further to select secure mode.

SafetyRelease™ Automatically unlocks the internal knob upon entry minimising the risk of being locked in.

Anti-Corrosion Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.

Counterbalance Bolt Proportionally distributes the load between the door and door frame.

Retrofitable Replace your existing Deadbolt. Fits 54mm hole. 60-70mm adjustable backset. 32-48mm door thickness. Can suit doors up to 95mm thickness with – Click Here

Lockwood Part Numbers:
005/B1SPDP, 005/B1EVBDP, 005/B1CPDP, 005/B1LSCDP, 005/B1SSSDP
