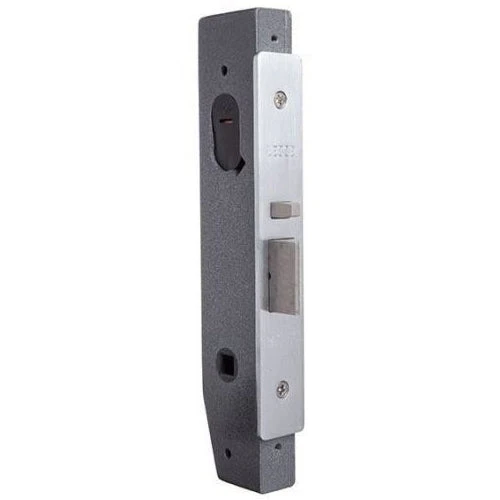

LEGGE 995MF SERIES MULTI FUNCTION NARROW MORTICE LOCK Locking Solutions

Legge’s 995MF Series narrow stile mortice locks and latches have been designed on the underlying successful design principles of the 990MF Series. Manufactured specifically to meet the requirements of the Australasian market, the 995MF Series provides the specifier and end user with a range of vestibule lock, combination lock and latch functions, for both metal and timber doors. The 995MF Series is ideally suited for commercial and industrial applications where durability and security are of major importance.

The 995MF Series has a high purity die cast zinc alloy case to provide rigidity and precision. Major internal components are made of either stainless steel or sintered steel/copper alloy to provide durability and strength.

The final product has been rigorously tested in accelerated wear tests and testimony to the quality of the 995MF Series is shown through the extensive use in the Australian and New Zealand markets.

Available in 23mm, 30mm, or 38mm backset options.

Features:

• Designed to suit hollow stile metal door sections with internal depths from 39mm (23mm backset version only) and narrow stile timber and French doors.
• The multi-function case allows easy conversion of a vestibule lock function (inside handle free) to a combination lock function (both handles locked) by a simple external operation
• The reversible stainless steel latch adjusts for inwards/outwards opening and left/right hand without case disassembly
• The latch is deadlatched by a stainless steel subbolt that retracts automatically with the main latch
• The 995MF case will accept bolt-through fixing for 159mm vertical fixing door furniture such as the Legge 5300/5400 Series narrow stile furniture
• Follower will accept 7.6mm-8mm furniture spindles, with no adjustment necessary
• A threaded pin is used for secure cylinder retention
• Designed to be compatible with most electric strikes
• The 10 year warranty provides specifiers and users with assured quality and performance
