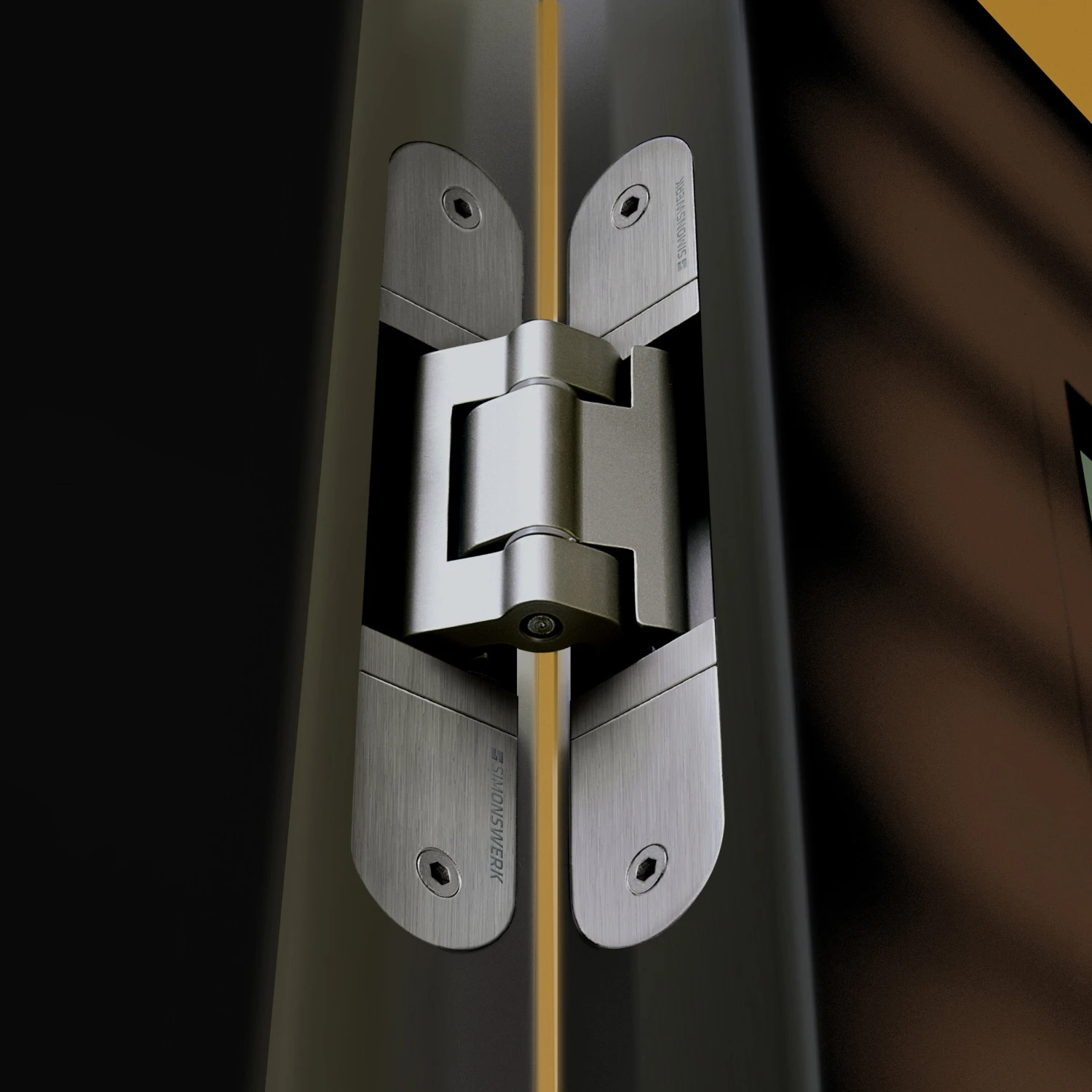

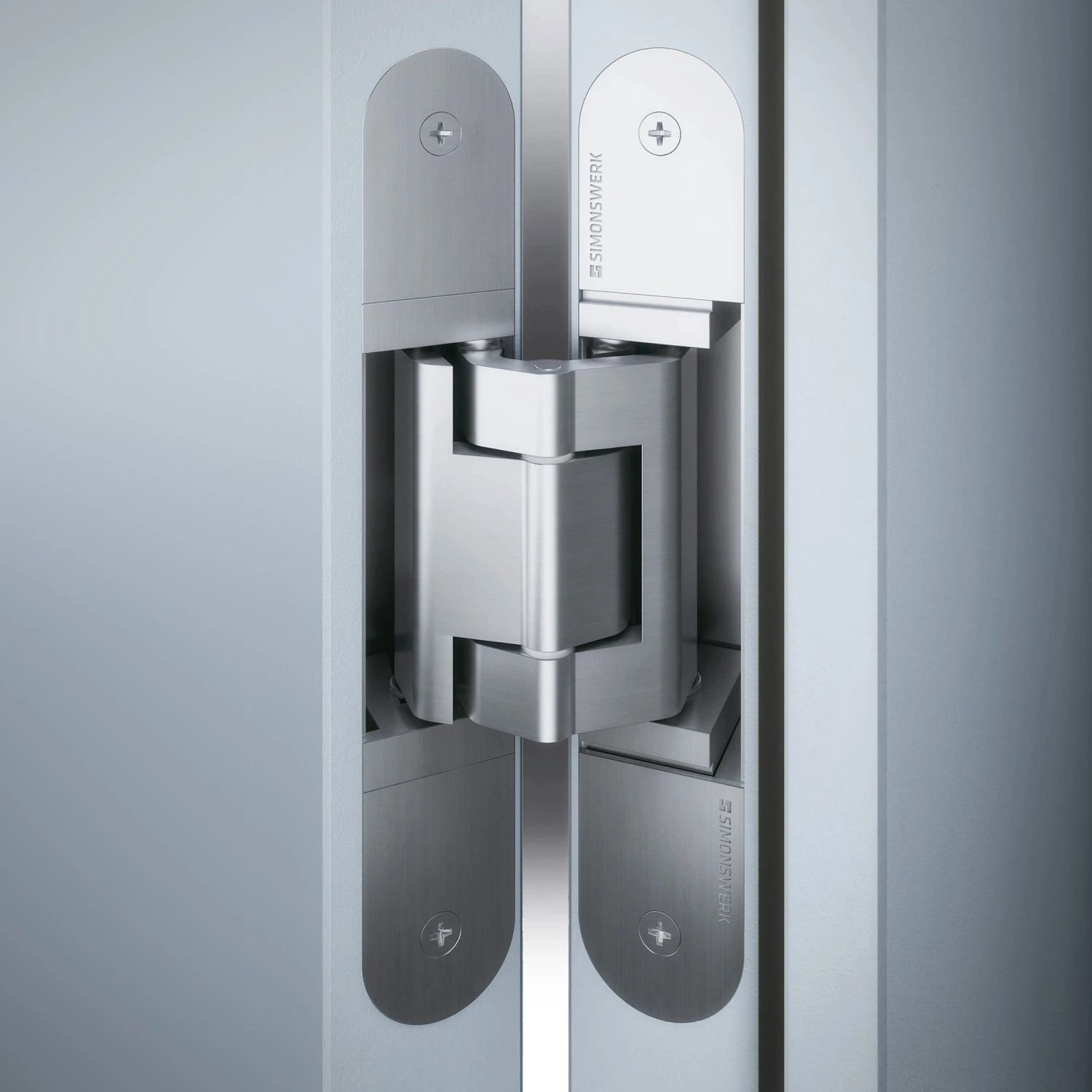

Halliday And Baillie Hinges & Magnets SIMONSWERK TECTUS CONCEALED HINGE TE540

Tectus concealed hinges provide options for quality residential doors and heavy duty doors distinguished by exceptional quality construction of the hinge body, without the look of a hinge.

Perfect for hidden doors, flush cabinetry doors/walls, and wherever a seamless look is required. Hinges come in a range of finishes.

The newly developed convenient continuous height adjustment of +/- 3 mm prevents the door from sagging and enables the door manufacturer to align the door efficiently and hassle free. All types show a full hinge body which covers the routing entirely. The small gap between door and jamb avoids finger injury.

Hinges are sold individually.
Ie. Quantity 1 = 1 hinge.

This is a non-stocked item. Please allow 3-5 business days for dispatch.

Optimized load capacities (door weights) for 2 hinges:
TE 240 3D – up to 60 kg – min door thickness 30mm
TE 340 3D – up to 80 kg – min door thickness 35mm
TE 540 3D – up to 120 kg – min door thickness 45mm
A8 versions for cladding of maximum 8mm can be purchased by special order.

Stock finishes – subject to availability:
F1 – Silver Matt SW124
Bronze Metallic – SW168
RAL9016 – Traffic White SW070
RAL9005 – Deep Matt Black SW107

Special order finishes – lead times apply:
Stainless Steel look SW126
Polished Nickel SW038
Polished Brass SW030
Satin Nickel Look SW125
Please note hinges are for interior use or sheltered exterior use only. The exception is the TE526 in stainless steel which can be used externally.
