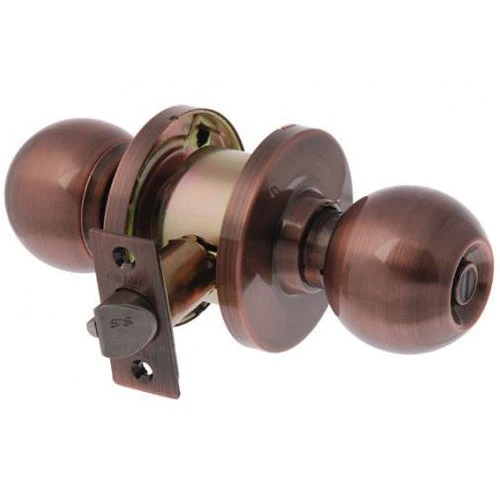

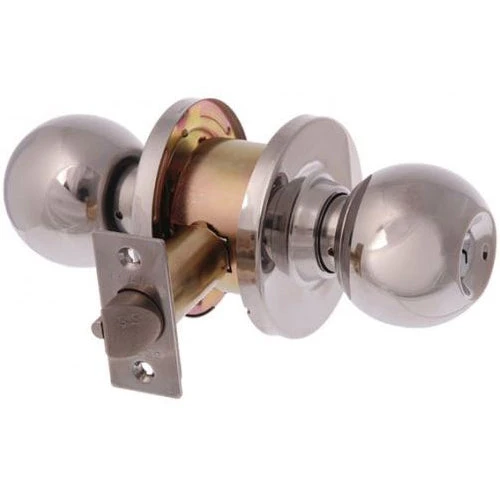

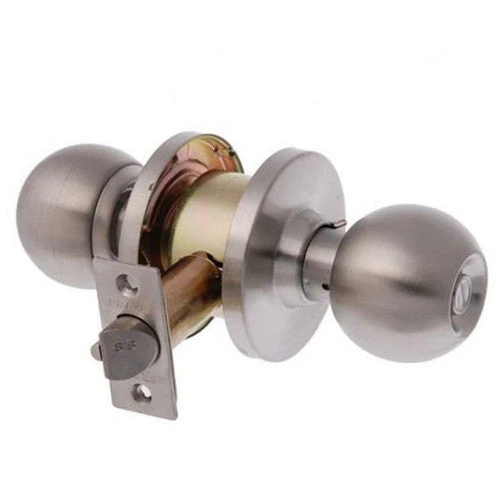

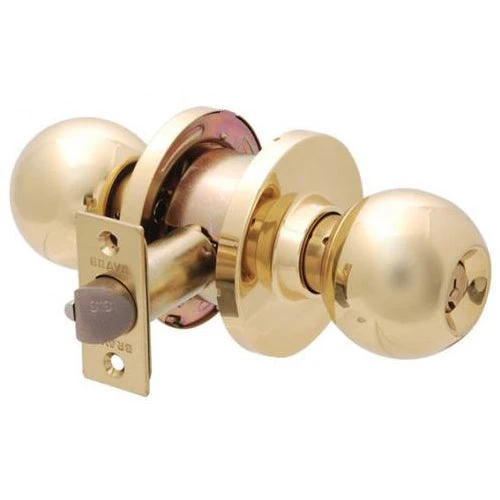

Entrance Sets BRAVA EA SERIES COMMERCIAL ENTRANCE KNOB SET

BRAVA Metro EA3000 series commercial grade 60 mm backset entrance knobset.

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Entrance function

• Outside key unlocks outside knob.
• Inside knob free at all times, push button locks outside knob.

Additional info

• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• 2 keys supplied.
• Fire rated.
• Finished in satin stainless steel, polished stainless steel, polished brass or antique copper.

Door thickness	35-45mm
Backset	60mm
max. Lever / knob projection distance may not include turnsnib	69.5mm
Strike	70mm x 27mm x 1.2mm
Latch	60mm backset
Latch face plate	57mm x 25mm
Cylinder	LW5 profile
Door handing	Non-handed knobs/levers
Rose	75mm
