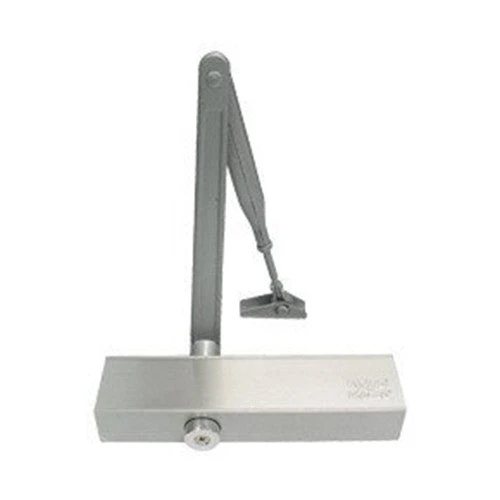

DORMAKABA DOOR CLOSER COMMERCIAL – 9024SIL

9024 Series surface mounted door closer is a high end unit offering multi-functional
operation suitable for most common doors in architectural and commercial applications.

Standard Features:

• Closing force power adjustable (EN2-4)
• A single closer provides variable power sizes
• Adjustable closing speed and latching speed
• Closing speed action (180˚~15˚)
• Latching speed action (15˚~0˚)
• Non-handed installation
• Compact extruded aluminium body design with minimal projection allowing installation to door with adjacent wall at 90˚
• Back check – beyond approx 60˚ (valve adjustable)
• Delayed action – between 180˚ and 65˚
• Parallel arm bracket supplied as standard
• Standard hold open arm – available as accessory
• Slide arm & track (inc. hold open) – available as accessory
• Fixing screws supplied to suit timber or metal fixing
• Drop plate and inverted mount plate – available as accessories
• Stainless steel box cover – available as accessory

Fire Rating:

9024 Series door closer has been successfully tested on
fire door assemblies in accordance with Australian
Standard AS1905 Part 1: Fire Resistant Door sets.
