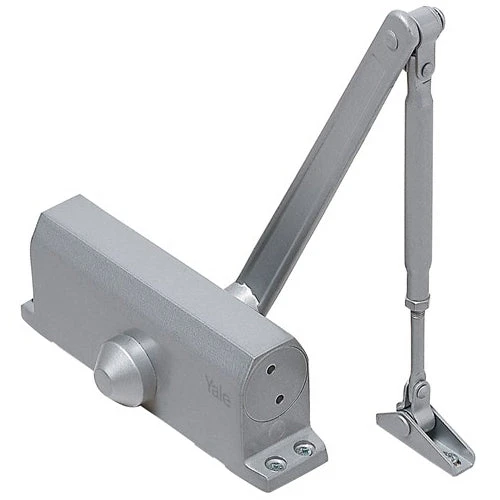

Door Closers YALE A300 SERIES HYDRAULIC DOOR CLOSER

The Yale A300 Series provides a full range of economy surface mounted door closers which covers a wide range of applications. Three Power sizes to suit most pull side applications where economy and ease of installation is required.

Power Sizes
Closer fixed power size range of 3, 4, 5.

Materials
High purity die-cast aluminium body. Heat treated steel rack and pinion. Stable hydraulic oil for consistent climatic operation and constant lubrication. Forged steel arms passivated against corrosion.

Mechanism
Rack and pinion design.

Hold-open
Available in this series.
Hold-open angle between 80° – 180°.
Order arm assembly separate.

Handing
Non-handed. Suitable for left or right hand doors.

Adjustment
Independent valves control closing and latching speeds.

Closing speed 180° – 10°.
Latching speed 10° – 0°.

Offset Parallel Arm
Available in this series.
Suits up to 13mm door stop.

Finish
Silver Baked Enamel – SIL
