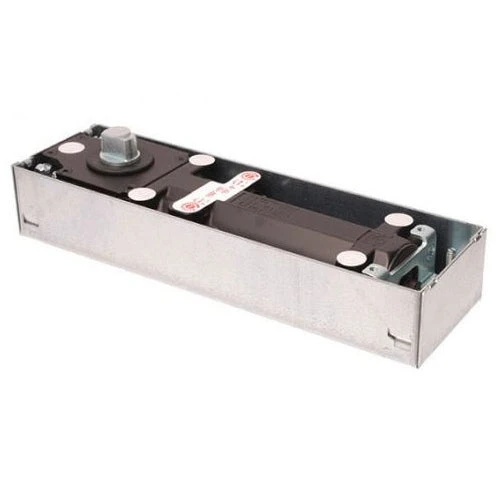

Door Closers DORMA FLOOR SPRING BTS75V EN1-4

DORMA BTS75V EN1-4 floor spring body. Including cement box and standard spindle. Cover plate sold separately – See part no. DO7510VSS

The BTS 75V is a universal non-handed floor spring for left hand (LH) or right hand (RH) single and double action doors. With adjustable spring stength and closing speed, with closing action operational from approx. 175°. Featuring hydraulically fully controlled closing cycle and mechanical backcheck.

Available in non hold open or hold open at 90°.

Suitable for installation on single and double action doors up to 1100mm (W) with a max. 120kg leaf weight.

Dimensions	Weight
285mm (L) x 82mm (W) x 50mm (H)	3.0kg
