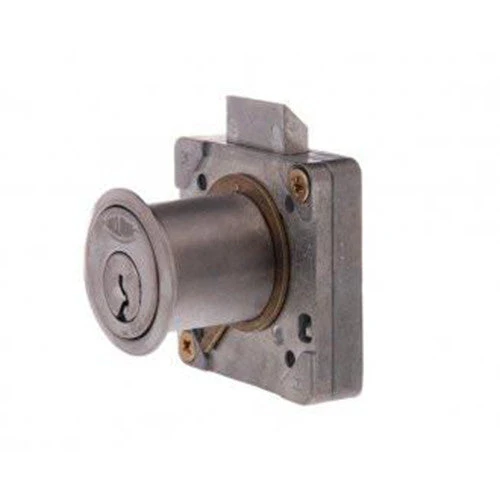

Cabinet & Drawer LOCKWOOD CUPBOARD LOCK 693ASC

Lockwood 693 series pin tumbler cupboard locks.

Suitable for commercial applications. Convertible from deadbolt to latching bolt.

• High quality cupboard lock.
• Changeable from bolt to latching function.
• Deadbolt throw left or down.
• Latching bolt throw right or up.
• 5 pin tumbler mechanism.
• Silca LW4 keyway.
• Compatible to most restricted keying systems.
• Incorporates the popular 570 6 pin barrel.
• Made primarily from diecast zinc and brass.
• Brass cylinder and barrel.
• 27mm diameter, 26.5mm projection.
• Zinc bolt with 10mm projection.
• Body 50mm x 50mm
• Supplied keyed to differ with 2 keys.
• Finished in satin chrome.
