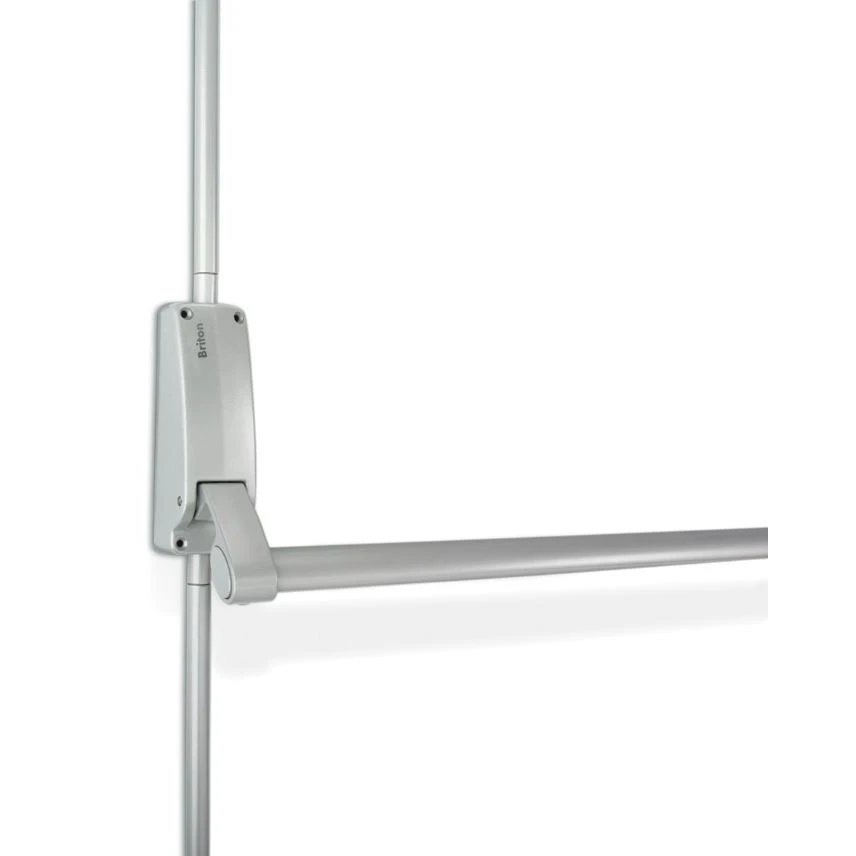

BRITON PANIC BAR 376E VERTICAL PANIC BOLT

Features:

• Suitable for all types of single doors and can be used in conjunction with either another 376E or a 379E for double non-rebated door applications
• For double rebated door applications the 377E double door set can be used
• Field sizeable to accommodate a range of door openings
• Two point locking for extra security
• Anti-thrust device, prevents unauthorised retraction of the latch
• Non-handed — will suit both left and right handed doors
• Adjustable top shoots
• Supplied with an easy-clean floor socket



Specifications:

Door type: Timber or metal
Stile width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
Door width: 665mm to 1300mm
Door height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
Material: Zinc die cast chassis. Steel rods crossbars
Finish: Silver enamel
Warranty: 10 year mechanical
