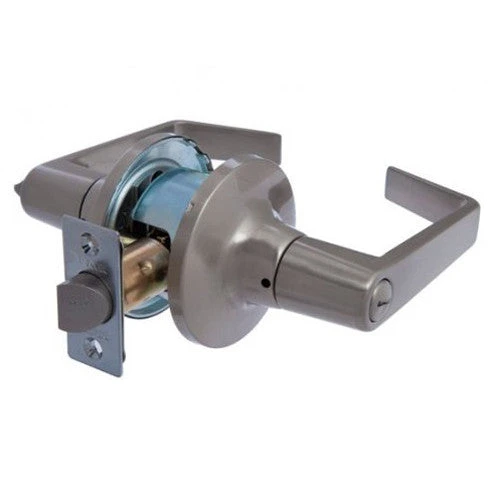

BRAVA Metro RH6000 series commercial grade tiebolt 60-70 mm backset entrance leverset.
 Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Entrance function
- Outside key locks and unlocks exterior lever.
- Inside lever free at all times, snib inside locks and unlocks outside lever.
Additional info
- Tiebolt concealed fixing.
- Silca LW5 profile.
- Incorporates the popular PD 8221 barrel.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in satin chrome.
| Door thickness | 35mm – 45mm |
| Backset | 60/70mm adjustable latch |
| max. Lever / knob projection distance may not include turnsnib | 68mm |
| Strike | 70mm x 28mm x 2mm |
| Latch | 60/70mm adjustable |
| Latch face plate | 25mm x 57mm |
| Cylinder | LW5 profile |
| Door handing | Non-handed levers |
| Rose | 75mm |
