Description

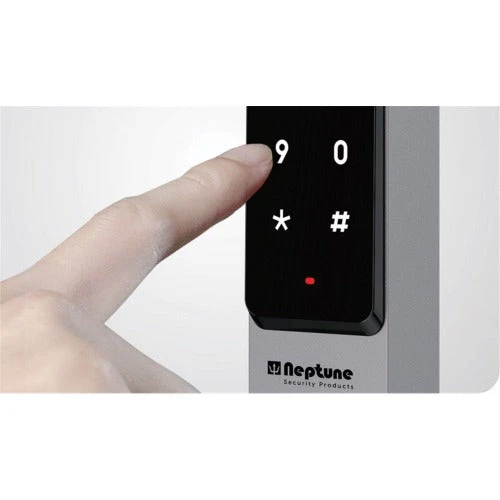

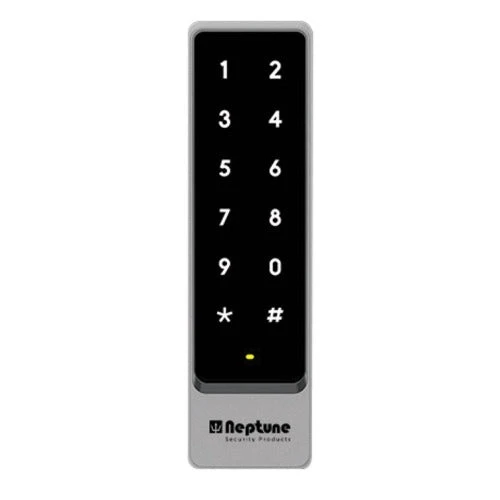

The NEKPWST2S is a slimline 2×6 IP65 rated keypad and has a capacitive touch keypad with a reinforced, high strength, wear-resistant glass panel.
There is an onboard reader, and with a dual-band antenna, supports EM/HID/MF Cards/Fobs.
The keypad backlight can be set to Normal ON, Normal OFF or Automatic mode. It is multi-function, so it can be used as a reader, single door controller, anti-pass back, etc.
The strong zinc alloy case makes this unit ready to be fitted in any domestic or commercial location.
- Input voltage: DC12~24V.
- Idle current: ≤50mA.
- Proximity card: 125KHz EM/HID; 13.56MHz MF/CPU/NFC (ISO14443A).
- Reading range: 125KHz ≤5 cm; 13.56MHz ≤2 cm.
- Wiegand output format: Wiegand 26-37 bit (HID card output Wiegand 26-37 automatically).
- Keypad output format: 4 bit, 8 bit, virtual card.
- Dimensions: 160 (H) x 45 (W) x 26 mm (D).
- Operating Temperature:-40~60°C.
- Operating Humidity:0~95%(non-condensing).
Â
Technical Specifications
| IP Rating | 65 |
| Working Voltage | 12V~24V DC |
| Anti Tamper | Yes |
| Body Type | 2×6 |
| Card Format | EM, HID & Mifare |
| Keypad Type | Touch |
| Manager Can Add/Delete | Yes |
| Number Of Users | 2000 |
| Stand Alone | Yes |
| Wiegand Output | Yes |
